Brand: Liberty AV | SKU: 00423LIBCF6A04-CONSI

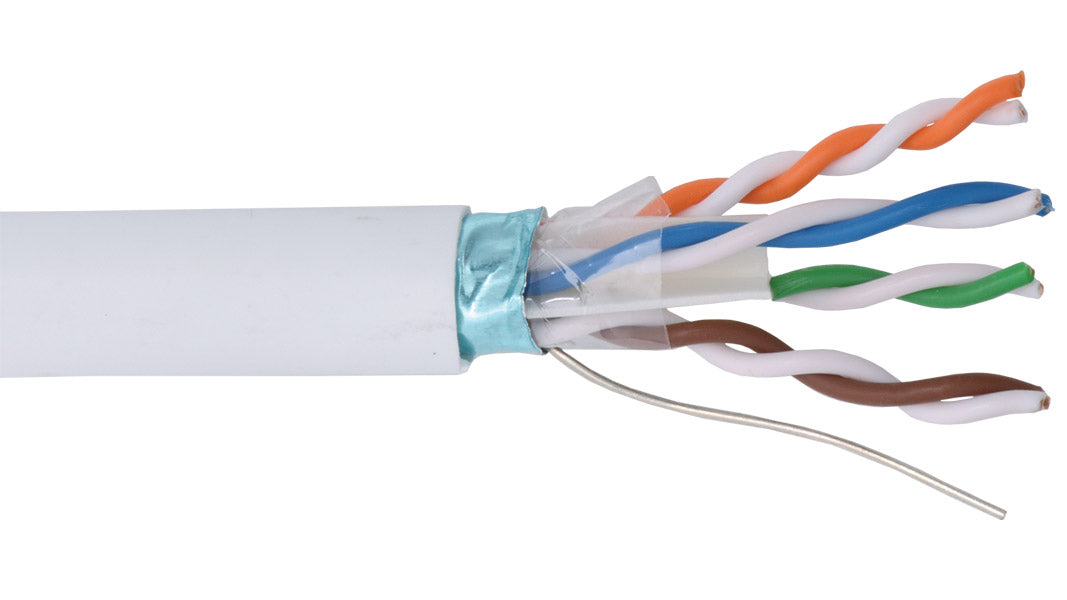

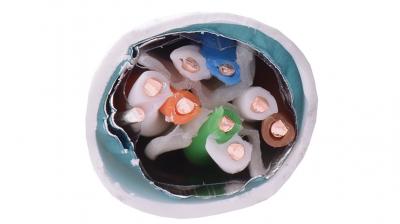

Liberty AV 24-4P-L6ASH-GRN | 1000' Green Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel

$715.00

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Liberty AV 24-4P-L6ASH-GRN | 1000' Green Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel

4 pair 23 AWG solid, twisted, and shielded cable NEC type CMR and CEC type CMR FT4. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Liberty AV - 24-4P-L6ASH-GRN - Features

Solid annealed bare copper conductors
High density polyethylene insulation
4 pairs twisted in varying lays and cabled
Overall aluminum/poly foil shield with drain
Flame rated PVC jacket
TIA/EIA-568-C Category 6A
NEC CMR, CEC CMR FT4, RoHS compliant
1000 foot spools

Specifications

Liberty AV - 24-4P-L6ASH-GRN - Applications

Horizontal LAN 10/100/1000/10GBaseT ethernet
Audio, video, infrared, IP control
Balun infrastructure, voice, voice over IP
PoE, HDBaseT, analog and digital media

Liberty AV - 24-4P-L6ASH-GRN - Specifications

UNSPSC Code	52161500
Conductor	23 AWG
Diameter	0.0226" \| 0.574mm
Capacitance	17.0 pF/FT \| 56.0 pF/M
Voltage rating	300V
Maximum current	1.4A@25°C
Wall thickness	0.009" \| 0.24mm
Weight	44 Lbs/1000’ \| 66 Kg/KM
LAN	300 feet
Final Outside Diameter	0.296
