Brand: Liberty AV
|
SKU:
10453930
Liberty AV 24-4P-P-L6ASH-BLK250 | 250' Black Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel
Regular price
$1,112.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Liberty AV 24-4P-P-L6ASH-BLK250 | 250' Black Category 6A F/UTP ...
Regular price
$1,112.58
Unit price
Brand: Liberty AV
|
SKU:
10453930
Regular price
$1,112.58
Unit price
Shipping calculated at checkout.
Description
Description

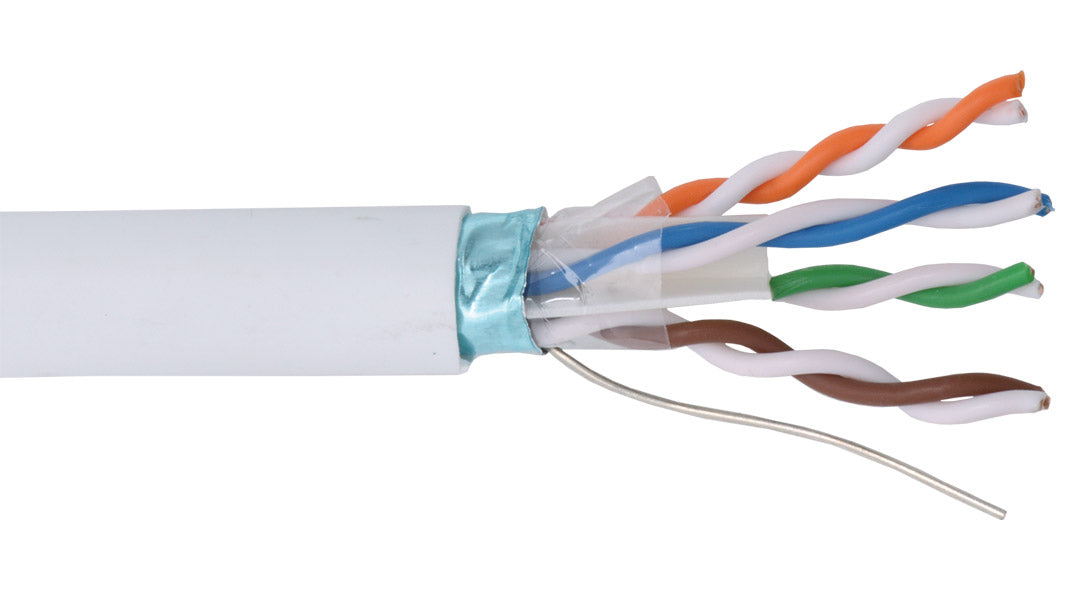

Liberty AV 24-4P-P-L6ASH-BLK250 | 250' Black Category 6A F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel
4 pair 23 AWG solid, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Third party verified to ANSI/TIA-568C Category 6A performance. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Liberty AV - 24-4P-P-L6ASH-BLK250 - Features
- 23 AWG solid bare copper conductors
- FEP, fluorinated ethylene propylene (Teflon(TM))
- Varying lay twisted pairs cabled on a common axis
- 100% foil shield with foil and drain facing in
- Ripcord under the jacket
- PL-PVC, plenum rated polyvinyl chloride alloy jacket
- Third party (UL, ETL) certified to category 6A performanceNEC rated CMP, CEC rated CMP, CMG FT6, RoHS compliant
Specifications
Specifications
Liberty AV - 24-4P-P-L6ASH-BLK250 - Applications
- Plenum horizontal LAN 10/100/1000/10GBaseT networking
- Balun infrastructure, voice, voice over IP cabling
- Video, audio, infraRed, IP control, PoE, HDBaseT
- Analog and digital multimedia extension and routing
Liberty AV - 24-4P-P-L6ASH-BLK250 - Specifications
| UNSPSC Code | 26121609 |
|---|---|
| Conductor | 23 AWG |
| Diameter | 0.0226" | 0.574mm |
| Capacitance | 17.0 pF/FT | 56.0 pF/M |
| Velocity of Propagation | 0.78 |
| Voltage rating | 300V |
| Maximum current | 1.4A@25°C |
| Weight | 45 Lbs/1000’ | 67 Kg/KM |
| Construct | 100% polyester tape binder |
| LAN | 300 feet |
| Final Outside Diameter | 0.29 |
