Liberty AV DL-1H1A1U-WPKT-W | DigitaLinx HDMI HDBaseT Wall Plate Ex...
Description
Description
The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, audio, USB High Speed (up to 190Mbps) and RS232 over single category 6 twisted paircable.
The DL-1H1A1U-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 upto 40m / 120’and 1080P up to 70m / 230’.
The audio circuit is completely separateand is not dependent on the HDMI or USB input source to be active.
The DigitalinxDL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC passthrough.The DL-1H1A1UKT-W HDBaseT receiver powers wall plate transmitter via HDBaseTso there is no need for an external power supply for the wall plate.The DL-1H1A1U-WPKT-W is sold only as a set.
The individual transmitter and receiverare not compatible with other HDseT devices due to proprietary PoE circuitry.
Liberty AV - DL-1H1A1U-WPKT-W - Features
- Fully Compatible with Promethean Interactive Whiteboards

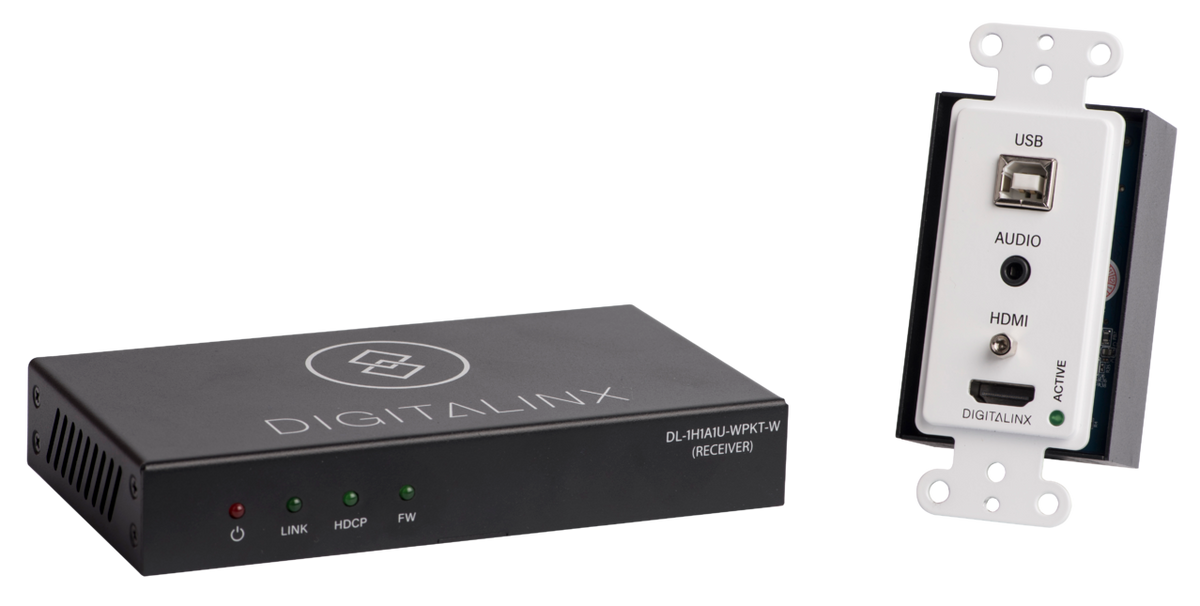

- Complete set includes Wall plate TX, RX, Power supply, cover plate
- Extend HDMI up to 4K, USB2.0, & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
- Extends RS232 & 1 way PoC from RXto wall plate TX
- HDMI, audio, USB 2.0 high speed extender set
- Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
- Pass-through 3.5mm analog audio passes audio independent of HDMI port
- Extend USB 2.0 high speed up to 240Mbps
- Recer features HDMI output, 3.5mm audio output, and 2 USB-A ports
- Supports HDCP 2.2 and HDCP 1.4 compliant
Specifications
Specifications
Liberty AV - DL-1H1A1U-WPKT-W - Applications
- Extend HDMI source, USB2.0 high speed, and audio source at the same time or independently
- Extension of HDMI, 3.5mm audio, USB2.0 high speed signals
- Education, K-12, commercial video, residential
- Liberty AV, its affiliated brands and parent companies, are not affiliated, associated with, or endorsed by Promethean. Any mention of the Promethean brand is to promote feature compatibility and provide information.
Liberty AV - DL-1H1A1U-WPKT-W - Specifications
| UNSPSC Code | 45110000 |
|---|
