Liberty AV DL-ARK-3H1VC | DigitaLinx "ARK" Series Three P...
Description
Description
4X4 HDBT Matrix Switch kitted with 3 receivers Features: Four HDMI inputs with HDCP 2.2 support Three HDBaseT Outputs with PoH Three HDBaseT Receivers kitted with the switch One HDMI output 70 m (230 ft) maximum extender distance Analog and digital aud io de-embedding on each output Front panel, IR, TCP/IP, and RS232 control IR and RS232 routing IR and RS232 tunneling over HDBaseT Control page and configuration accessible from web browser (Web GUI) Advanced HDCP management Applications: True matrix r outing and distribution of HDMI signals A/V routing in environments with demanding control system requirements Ideal for houses of worship, corporate video conferencing, boardrooms, and conference centers Accessories: IR components: IR Receiver IR Emit ter (TX) Compatible matching extender units: HDBaseT Lite with control/power - 60m (196 ft) range: HDBTLite/Ctrl RX HDBaseT Lite with power - 60m (196 ft) range: HDBTLite RX HDBaseT with power/ethernet/control - 90m (295 ft) range: HDBT/Ctrl RX Compati ble matrix solutions: FLX HDBaseT Lite with control - 4 inputs: FLX HDBT I/P 6x4 matrix; HDBaseT Lite with control: FLX-64
Liberty AV - DL-ARK-3H1VC - Features

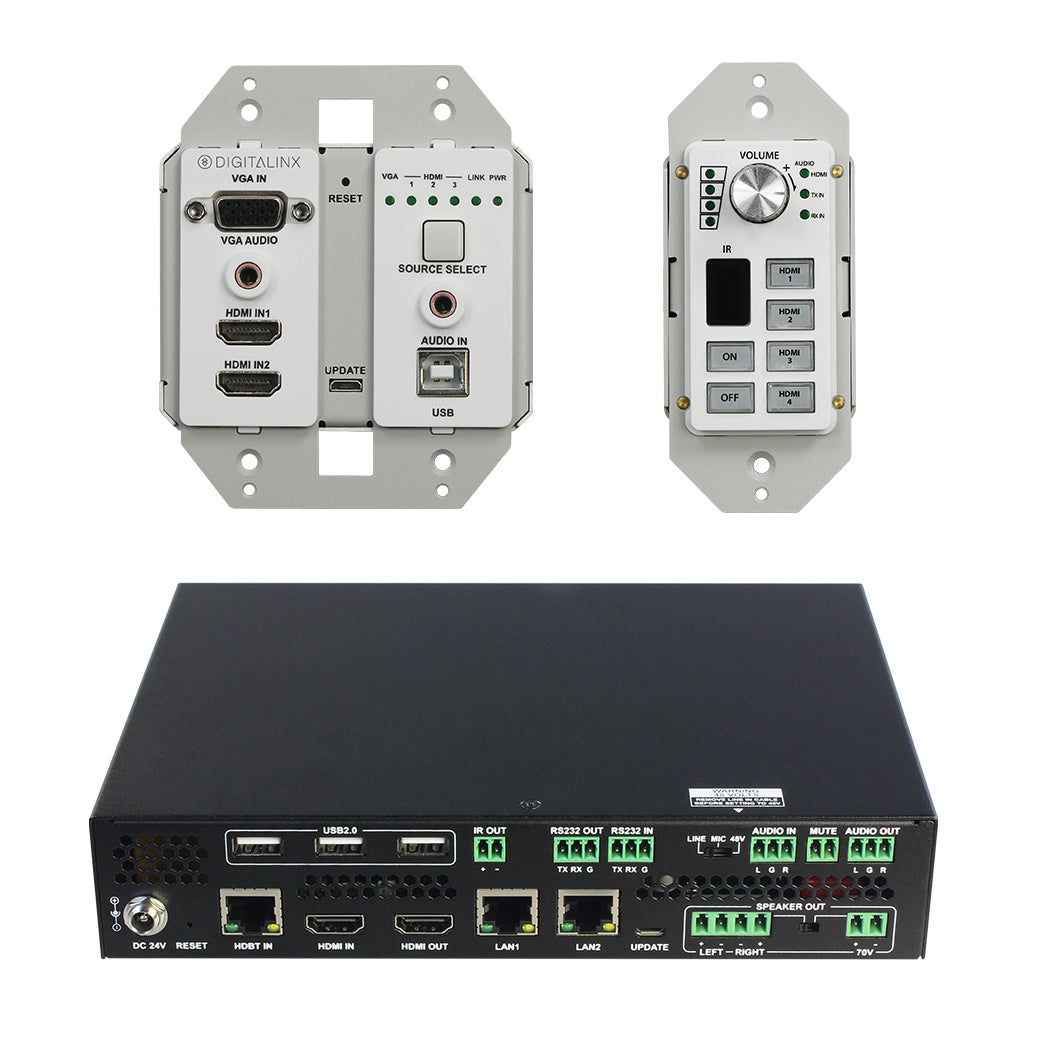

- System Includes input plate, system control plate, receiver/processor, power supply, mounting tabs for RX, white and black cover & face plates, button lables
- Input plate offers 2 HDMI, VGA w/audio, USB-B, and separate pass-through audio. (Input 4 is on RX) HDBaseT output up to 70m to receive unit. HDCP2.2 compliant
- Receiver offers HDMI input for local devices, HDBT in, HDMI output with 4K scaling, 70v / 8ohm amp, line / mic in w/ selectable phantom power, audio out, USB2.0 high speed 3 port hub, HDMI out, 2 LAN ports, mute relay, RS232 port, IR port
- Input plate and control plate ship with white and black face and cover plates
- Input 4 (HDMI) located on receiver unit to be used for remote BYOD and other sources located near the display
- System can be programmed to power on/off connected display/projector via RS232, IR, or CEC
- IR on control plate acts as IR repeater using flasher output of processor receiver
- USB-B 2.0 high speed extension from wall plate to RX USB 3 port hub
- Control plate for source selection, display / system power on/off, audio source selection and volume
- Supports resolutions up to 4k
- Integrated scaling up to 4k with fast switching
- HDCP2.2 compliant
- Auto switching or manual switching via control plate or web GUI

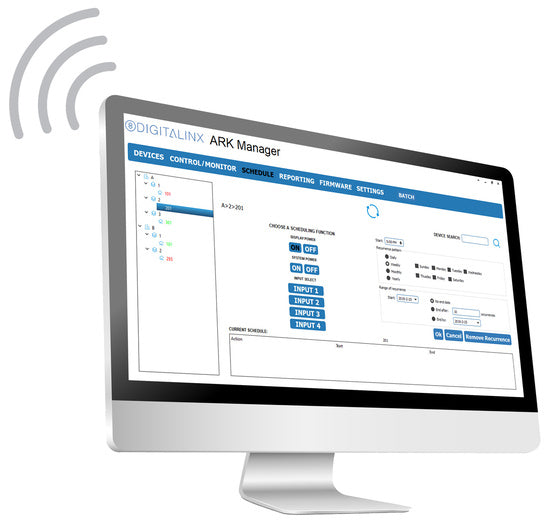

- Web based remote monitoring software allows centralized status view and control of system from anywhere on the LAN. Also offers remote configuration for easier setup
- WEB based GUI for local device setup and config & when in user mode full control from any browser device
- UL Listed
Specifications
Specifications
Liberty AV - DL-ARK-3H1VC - Applications
- K-12 classroom
- Higher education classroom
- Training room
- Any application using interactive display
Liberty AV - DL-ARK-3H1VC - Specifications
| UNSPSC Code | 45110000 |
|---|
