Liberty AV DL-AVX2100-H2 | Digitalinx Series Advanced HDMI 2.0 Over AVX Extender Set/kit with eARC, Control, & Ethernet

Liberty AV - DL-AVX2100-H2 - Features

• Overview: Transmit flawless zero-latency Video up to 4K60 4:4:4, HDR10, Dolby Vision, Multi-Channel Audio, eARC / ARC, Pass Gigabit Ethernet, IR, & RS232 over one Category Cable up to 100 meters over Cat6a or above, or up to 55m over Cat6. Built around the well established IEEE ethernet standard, AVX technology ensures ultimate performance using established standards and without the need for shielded cable on most installations

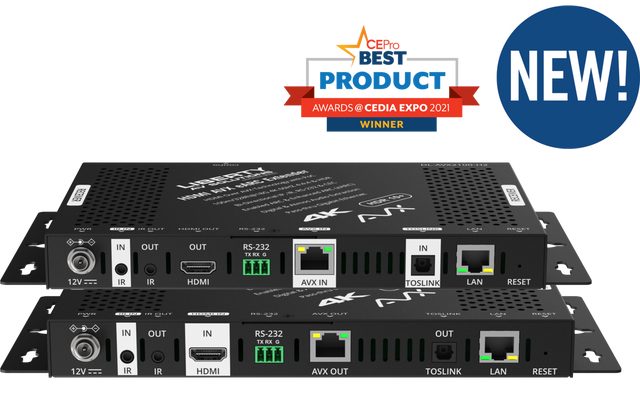

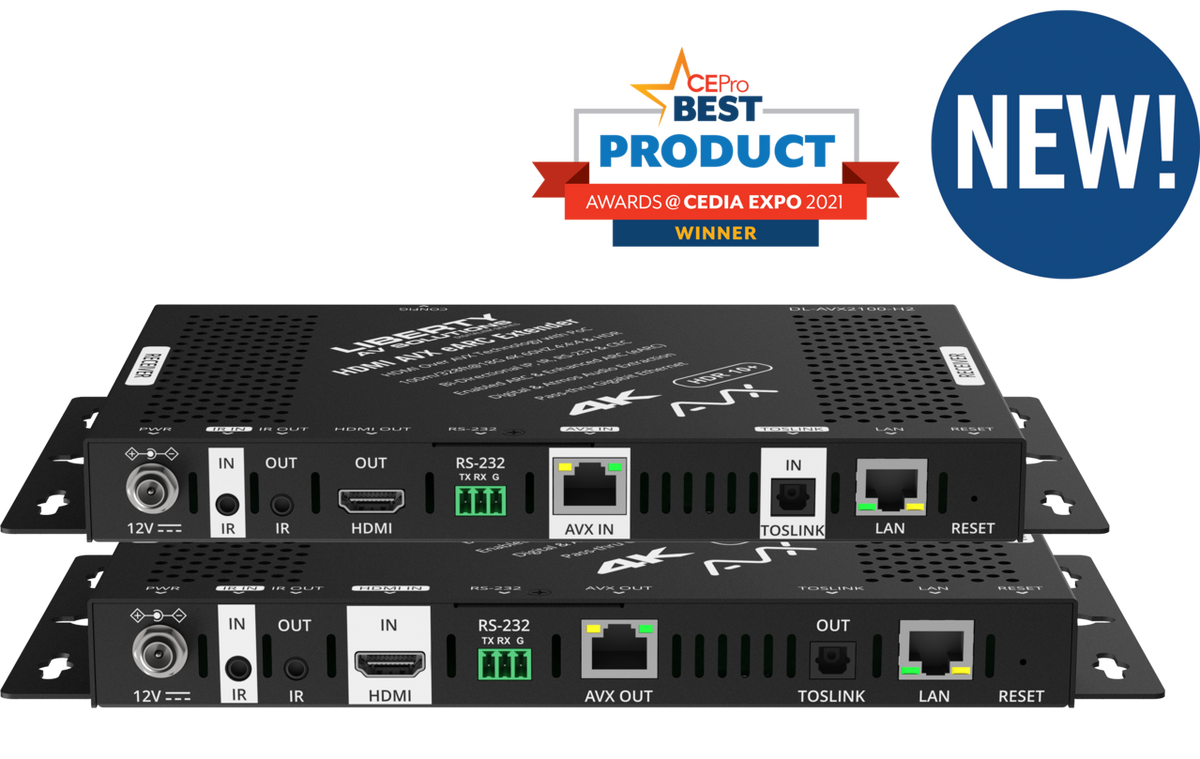

• Transmitter Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset button
• Receiver Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset button
• Video Resolutions: Supports a full range of resolutions up to 4K60 4:4:4
• Dynamic Metadata HDR: HDR formats such as Dolby Vision, HDR10, HLG
• Audio Protocols: DTS-HD, Dolby TrueHD, 7.1ch digital audio, Dolby Atmos, DTS-X, and all other digital audio standard formats
• eARC/ARC Support: ARC & eARC up to 8 channels from the Receiver back to the Transmitter which includes Dolby Atmos and DTS-X, TOSLINK supporting S/PDIF up to 5.1 channels. Toslink digital audio extension and Toslink audio de-embedding up to 5.1
• Control Protocols: Extend bi-directional IR, RS-232, CEC, and Ethernet control
• Commercial Design: Eliminate cable clutter by extending multimedia signals using two metal chassis with vented slots for heat dissipation. Provided mounting brackets and screws allow you to mount the devices behind a display, inside a closet, on an equipment rack, or other various locations
• Compliance: AVX 1.0, HDMI 2.0/1.4 backwards compatible, HDCP2.3/ 2.2/1.4 backwards compatible, Dolby
• Ethernet Data Transfer Rate: Pass up to 1 Gigabit of Ethernet speed
• Power Over Ethernet (PoE) - PoE allows one power adapter on the transmit side to power both the transmitter and receiver
• Dimensions: 215mm/8.42” L x 25mm/0,98” W x 140mm/5.5” H)
• Package includes: HDMI AVX eARC Extender Set (Transmitter & Receiver units,) two IR blasters, external power supply, mounting brackets, and user manual
• Complete Plug and Play: No additional setup or configuration
• Compatible HDMI Source Devices: HDMI sources, such as gaming consoles, AVRs, computer PCs, Blu-ray players, and media players
