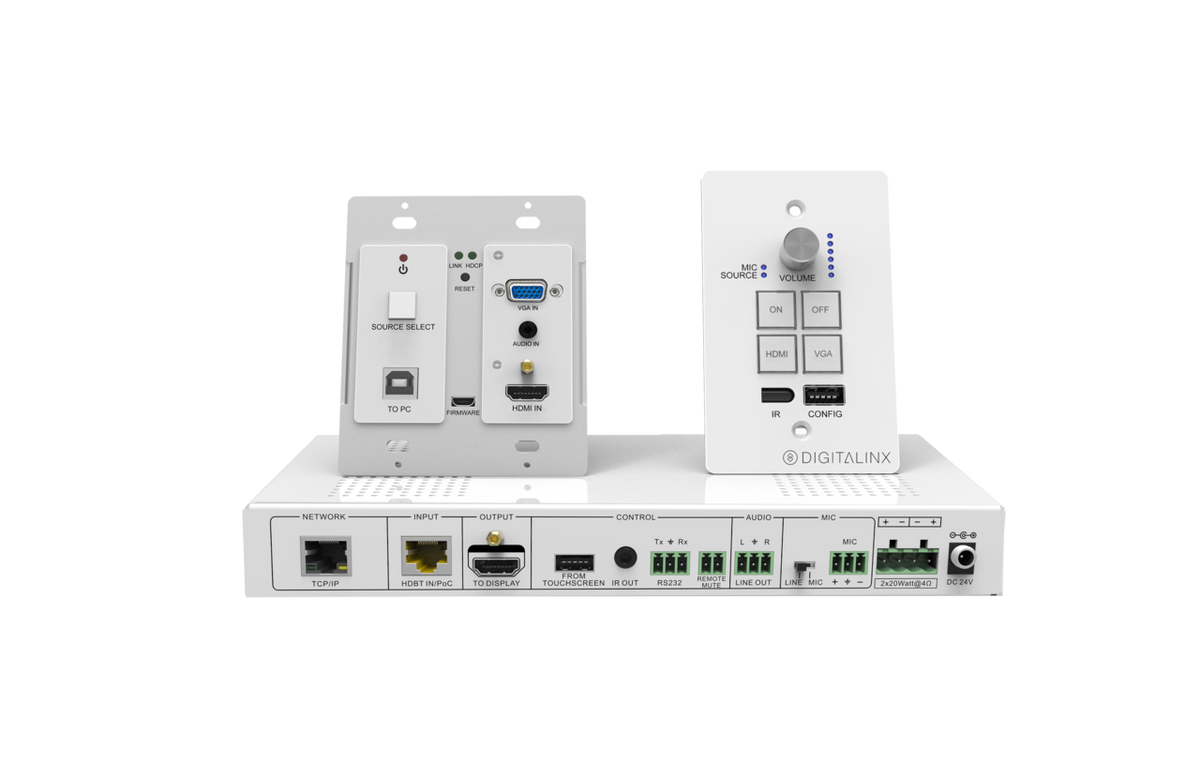

Liberty AV DL-RMKTC1H1V-W-BSTK | DigitaLinx HDMI, VGA and USB 2.0 Extender and Keypad Control System

Liberty AV - DL-RMKTC1H1V-W-BSTK - Features

• Includes wallplate transmitter, wallplate control panel
• Wallplate transmitter features: * VGA and HDMI inputs with automatic or manual switching
• * USB-B connection for local PC and interactive whiteboard
• * Single twisted pair for data and power
• Wallplate control panel features: * System on/off
• * Mic and source volume control
• * IR learning for controlling connected devices
• * Single twisted pair for data and power
• Receiver/processor features: * Mic/line input
• * HDMI output with audio de?embedding
• * IR and RS232 output for display and/or screen control
• * 2x20w 4 ohm amplifier for speaker integration
• * TCP/IP connectivity for system wide monitoring and
• * USB-A connection for local PC and interactive whiteboard
• * Hardware for ceiling or wall mounting
