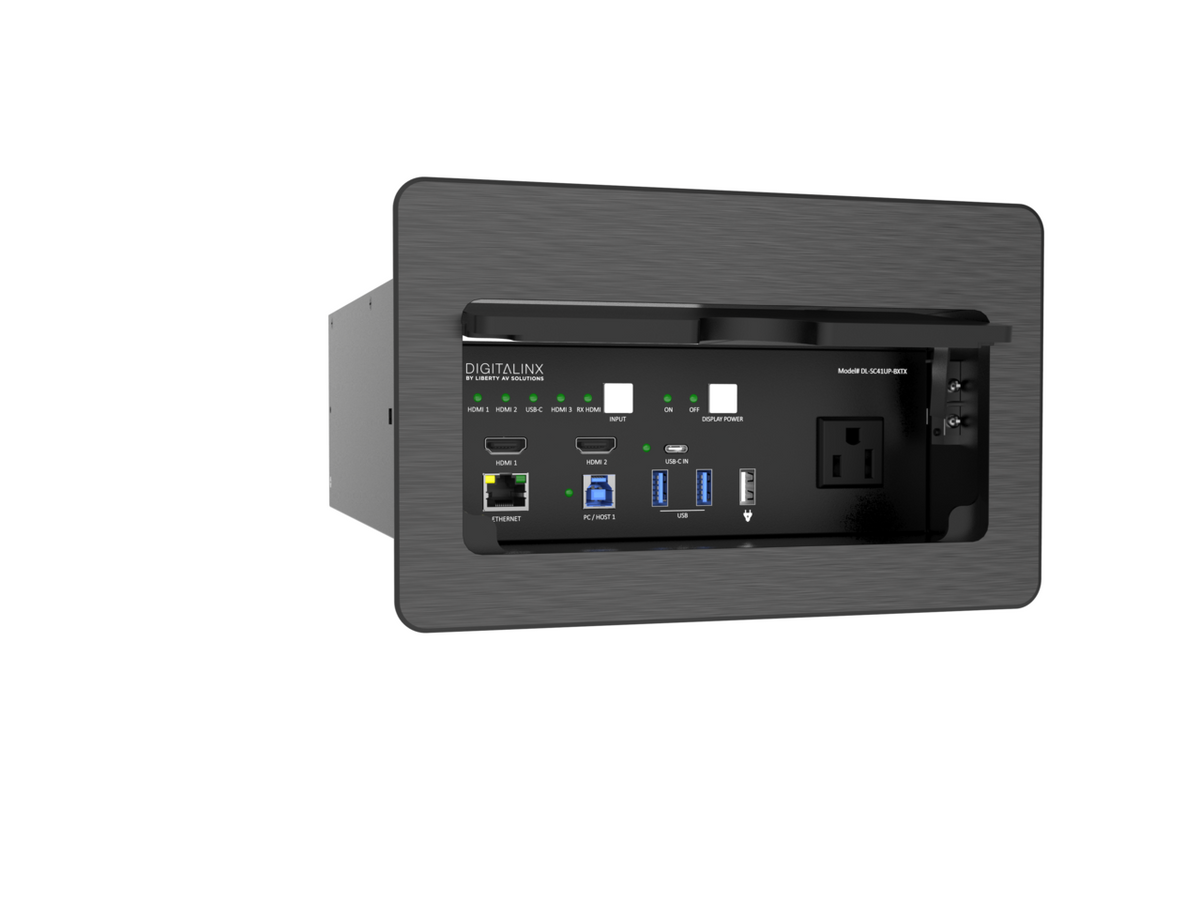

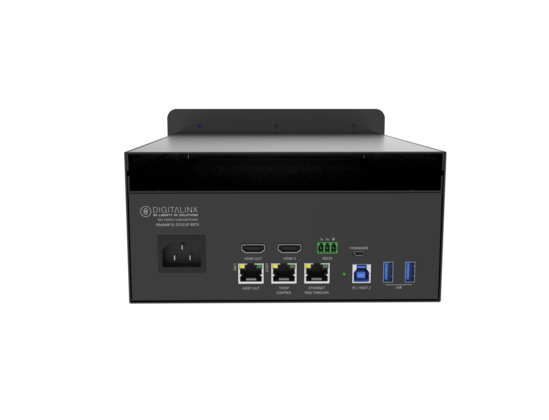

Liberty AV DL-SC41UP-BXTX | "TeamUp+" Series Multi-Format Table Box VC Collaboration Switcher / Extender

Liberty AV - DL-SC41UP-BXTX - Features

• Conference, Huddle, Training room 4x1 Matrix presentation switcher. Becomes 5x1 when using optional HDBaseT Receiver with HDMI input
• 3 HDMI, 1 USB-C on transmitter plus 1 HDMI input on receiver when used, pass-through ethernet, and AC power
• 1 HDMI and 1 HDBaseT output up to 70 meters
• Complete Plug and Play, NO additional driver or software required to be recognized by the computer
• 6 port USB3.0 high speed hub includes 2 USB-B host ports and 4 USB-A peripheral ports. USB-C acts as a 3rd host port
• Add 2 additional USB2.0 type A client ports when combined with HDBaseT receiver
• Combine with DL-SCU-RX when HDBaseT is required
• AC Power for switch and pass-through will provide 40w USB-C charging power, or power via 1 way PoC from HDBaseT RX
• Supports resolutions up to HDMI 2.0b, 4K/60Hz/4:4:4 8bit, HDR 10
• HDCP2.2 Compliant
• Fully function USB-C port provides up to 40w charging power when device is locally powered
• Power delivery can be PoH from RX to TX or locally powered when stand alone, or when USB-C power is desired
• EDID management per input
• Auto Display control to power on/off display when source is detected. Also offers 2 relays for screen, shades, etc when combined with HDBaseT RX
• Control via TCP/IP, RS232, or front panel buttons
