Brand: Liberty AV | SKU: 10453941

Liberty AV LLINX-U-DB-250 | 250' Black OEM Systems Universal Control 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Cable Reel

$251.38

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Liberty AV LLINX-U-DB-250 | 250' Black OEM Systems Universal Control 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Cable Reel

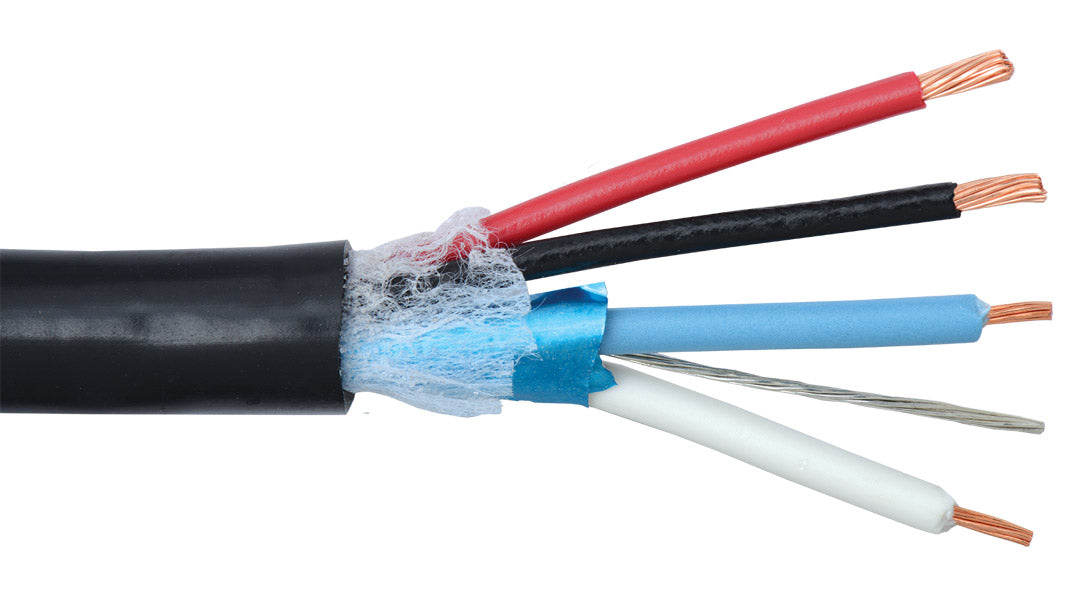

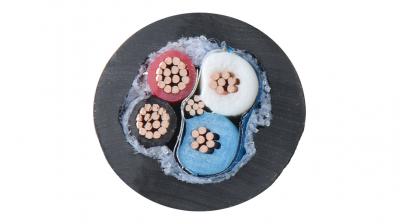

Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed. Sunlight resistant, suitable for direct burial and wet locations. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Liberty AV - LLINX-U-DB-250 - Features

Data pair: 22 AWG stranded, twisted, shielded low cap
Data pair: 105 Ohm, 12.5 pF/FT low capacitance
Power pair: 18 AWG stranded, twisted unshielded
Data and power components cabled on a common axis
100% water blocking tape binder
Ripcord
UV stabilized PVC, polyvinyl chloride jacket
Direct burial, sunlight resistant, RoHS compliant

Specifications

Liberty AV - LLINX-U-DB-250 - Applications

Outdoor OEM support for AMX universal bus systems
Outdoor RS-232C, RS-422, RS-485 plus low voltage power
Outdoor analog and digital audio

Liberty AV - LLINX-U-DB-250 - Specifications

UNSPSC Code	39120000
Conductor	22 AWG
Diameter	0.074" \| 1.88mm
Voltage rating	300V
Weight	44 Lbs/1000’ \| 66 Kg/KM
Performance	18 AWG power: 500 feet maximum
Final Outside Diameter	0.275
