Brand: Liberty AV
|
SKU:
10277165
Liberty AV LLINX-U-P-250 | 250 Feet Grey OEM Systems Universal Control 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Composite Plenum Cable Reel
Regular price
$625.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Liberty AV LLINX-U-P-250 | 250 Feet Grey OEM Systems Universal Cont...
Regular price
$625.11
Unit price
Description
Description
Liberty AV LLINX-U-P-250 | 250 Feet Grey OEM Systems Universal Control 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Composite Plenum Cable Reel

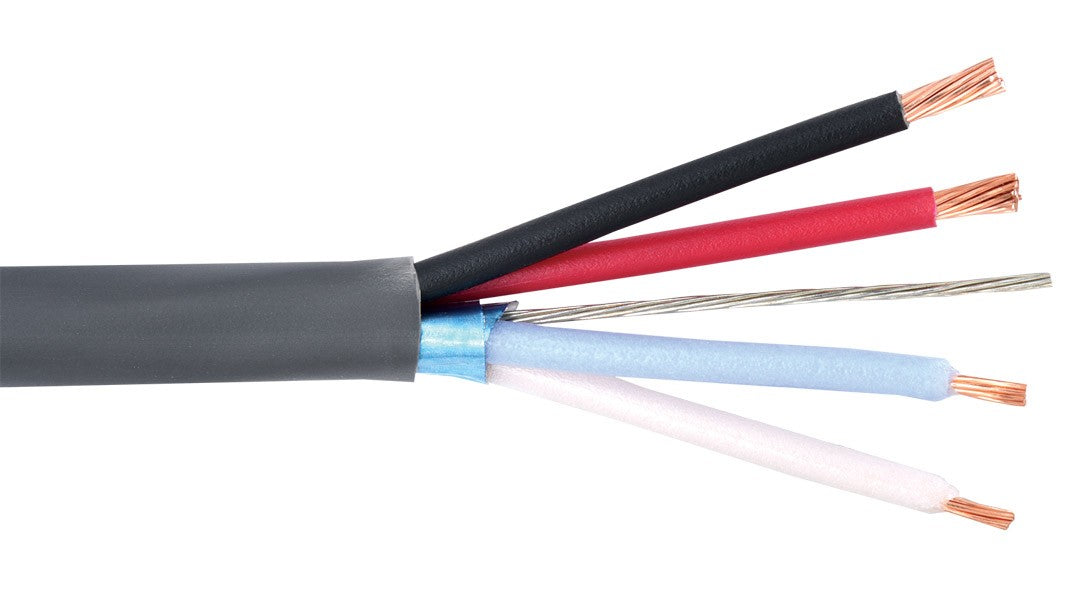

Liberty AV - LLINX-U-P-250 - Features
- Data pair: 22 AWG 7-strand tinned copper conductors
- Data pair: foamed FEP insulation for low capacitance
- Data pair: 100% isolated foil shield with drain wire
- Data pair: 105 Ohm, 12.5 pF/FT low capacitance
- Power pair: 18 AWG 7-strand annealed bare copper conductor
- Power pair: PL-PVC, plenum rated PVC alloy insulation
- Data and power components cabled on a common axis
- Ripcord
- PL-PVC, plenum rated PVC alloy outer jacket
- NEC CMP, CEC CMP FT6, RoHS compliant
Specifications
Specifications
Liberty AV - LLINX-U-P-250 - Specifications
| Conductor Count | 1 Pair |
|---|---|
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Not Listed By Ul Under Nec |
| Screen/Shield | Yes |
| UNSPSC Code | 26121524 |
