Brand: Liberty AV | SKU: LIB-LUTRON-YEL

Liberty AV LUTRON-YEL | 1000' Blue OEM Systems Lighting Control for Lutron Universal Control GRX-CBL-346S Equal Cable Reel

$566.81

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Liberty AV LUTRON-YEL | 1000' Blue OEM Systems Lighting Control for Lutron Universal Control GRX-CBL-346S Equal Cable Reel

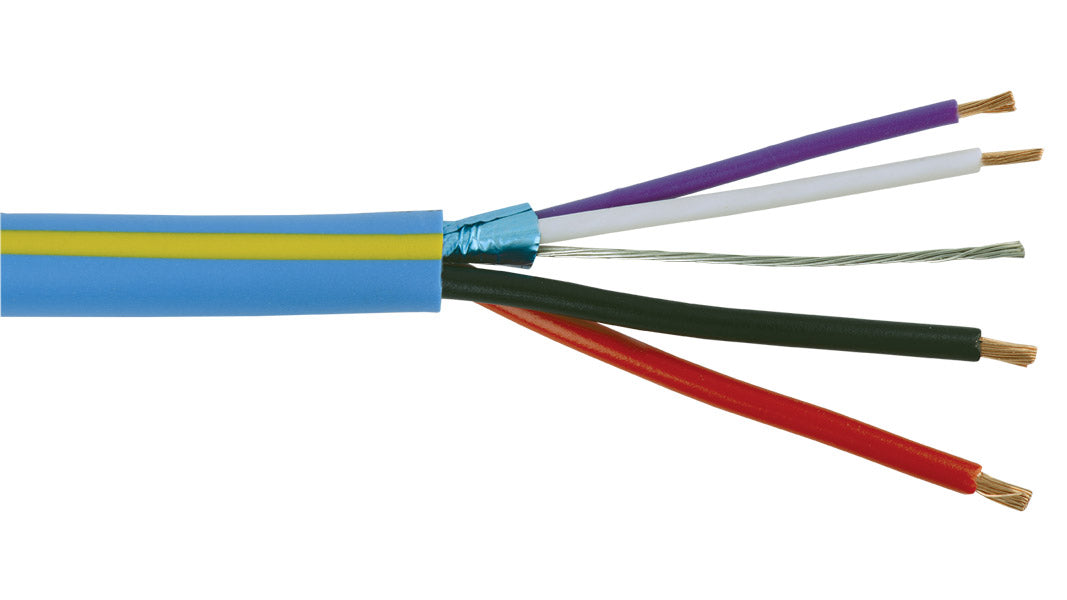

Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and a 18 AWG stranded, twisted, and unshielded power pair cabled together and overall jacketed. NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Liberty AV - LUTRON-YEL - Features

Lutron universal control and power cable
Equivalent to GRX-CBL-346S (keypad)
Twisted, shielded 22 AWG data pair
Twisted, unshielded 18 AWG power pair
Low capacitance data pair under 24 pF/FT
Flame rated PVC jacket with a yellow stripe
NEC CM, CEC CMG FT4, RoHS compliant
1000 foot spools

Specifications

Liberty AV - LUTRON-YEL - Applications

OEM RS-232C, RS-422, and RS-485 data control
18 AWG power pair 125 feet for 1 QS drive unit
Power pair for up to 300 feet
Class 2 and class 3 low voltage power
Systems instrumentation and control

Liberty AV - LUTRON-YEL - Specifications

UNSPSC Code	52161500
Conductor	22 AWG
Diameter	0.030" \| 0.75mm
Wall thickness	0.013" \| 0.33mm
Diameter	0.056" \| 1.42mm
DC resistance	15.7 ? / 1000’ \| 51.50 ?/KM
Mutual capacitance	23.7 pF/FT \| 77.74 pF/M
Velocity of Propagation	0.78
Voltage rating	300V
Color Code	Red, Black
Weight	41 Lbs/1000’ \| 62 Kg/KM
Bend radius	2.28" \| 58mm unloaded
