Brand: Liberty AV | SKU: RG6-CM-WHT

Liberty AV RG6-CM-WHT | 1000' White RG6 CCS Dual Shielded Coaxial Cable Swept to 3.0 GHz Reel

$201.78

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

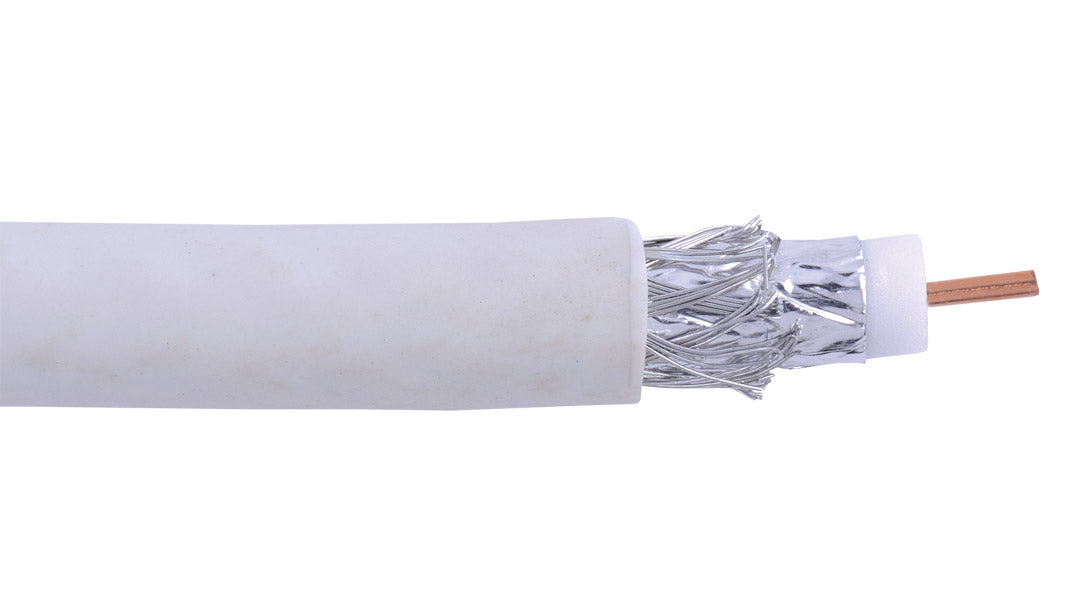

Liberty AV RG6-CM-WHT | 1000' White RG6 CCS Dual Shielded Coaxial Cable Swept to 3.0 GHz Reel

18 AWG solid core CCS dual shielded RG6 CATV/DBS coaxial cable NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.

Liberty AV - RG6-CM-WHT - Features

18 AWG solid copper clad steel center conductor
Gas-injected cellular polyethylene dielectric
Dual shield: Foil+60% aluminum foil and braid
Flame rated polyvinyl chloride (FR-PVC) jacket
NEC CM, CEC CMG FT4, RoHS compliant
3.0 GHz sweep test encompasses all CATV/DBS needs

Specifications

Liberty AV - RG6-CM-WHT - Applications

CATV / MATV / cable modem
Direct broadcast satellite (DBS) without DC requirements
RF modulated video distribution

Liberty AV - RG6-CM-WHT - Specifications

Coax Construction	Coaxial
Coax Type	Rg 6
Conductor Material	Copper Clad Steel
Fire Rating	Riser
UNSPSC Code	26121606
Conductor	18 AWG
Diameter	0.040" \| 1.02mm
DC resistance	36.28 ? / 1000’ \| 119 ?/KM
Voltage rating	300V
Wall thickness	0.070" \| 1.78mm
Color Code	Natural
Weight	29 Lbs/1000’ \| 44 Kg/KM
Bend radius	2.68" \| 68mm unloaded
Final Outside Diameter	0.268
