LifeSafety Power FPO150-C8D8E2 | Power System, Input Voltage 120/230 VAC

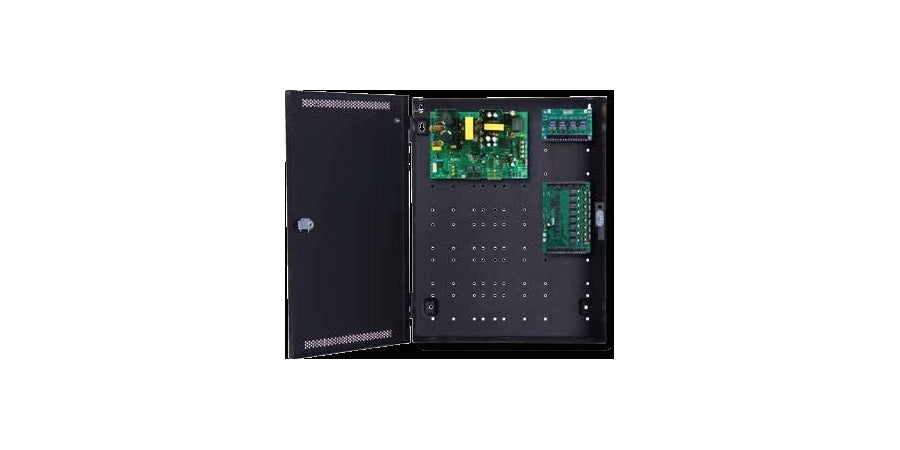

The FlexPower FPO150-C8D8E2 is a single voltage, off-line switchmode power supply battery charger system specifically designed for the access control segment of the lifesafety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space and provides one power supply which can be set to 12 or 24 V. Eight auxiliary outputs are provided for readers, REX devices or other similar units with each output selectable for either continuous or switched DC. Eight access controlled trigger inputs control eight relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure or dry contact operation. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
