Linear ACP00937 | Telephone entry system, Voltage 30 V, Width 9.75 in.

Linear ACP00937 | Telephone entry system, Voltage 30 V, Width 9.75 in.

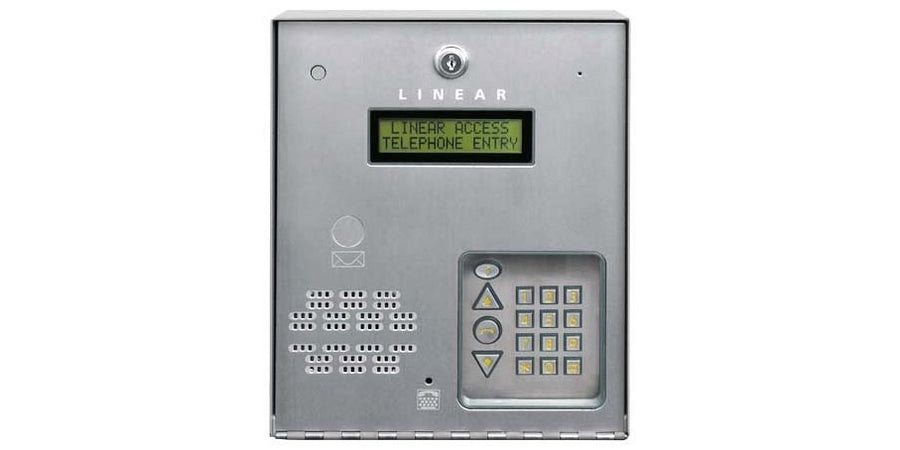

The system can be used in a lobby or outside. Surface, recessed, and pedestal mounting options are supported. The system utilizes full duplex telephone communications between visitors and residents for granting access. Housed in a locked, rugged stainless steel faced enclosure, the AE-100 features a lighted 12-key telephone style keypad and four operation buttons all with bright, easy-to-see graphics. The backlit two-line directory LCD display scrolls a programmable welcome message and shows the directory Names and Directory Codes. The system contains a built-in microphone, tamper resistant speaker, and a TTY connector for the hearing impaired. The heavy duty access relay can control electric door strikes, magnetic locks, door & gate operators, or barrier gates. Multi-lingual display programming prompts and voice help is available with a choice of English, Spanish, French-Canadian, or Portuguese language selection for the system. The system can be programmed locally using the keypad, or remotely with a touch tone telephone. Optional features supported are provisions for postal lock and color CCTV camera installation (Model CCM-1A). The AE-100 is powered from a 16 VAC plug-in transformer and supports an optional internal rechargeable 1.2 amp/hour backup battery. The battery charging circuit will support an external backup battery with up to 7 amp/hour capacity.
