Linear Corporation 0-211466 | Indoor / Outdoor Surface-mount Rugged...
Description
Description

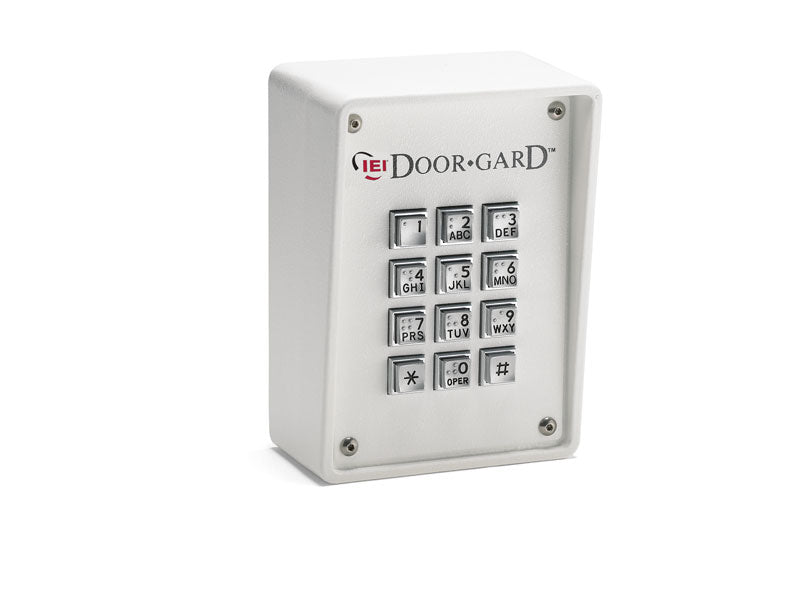

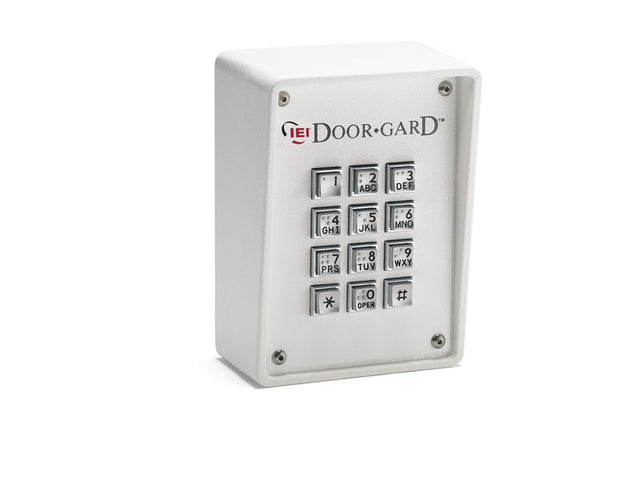

The ruggedized R style 212R keypad features a cast aluminum housing and all-metal faceplate that has been treated with polyurethane to increase its protection from corrosion. The ruggedized keypad uses all metal Braille, alpha-numeric keys. There is also an internal sounder that is used to indicate key press feedback. The ruggedized keypad’s housing can be mounted to a variety of surfaces. Suggested mounting includes; gate goosenecks, post, concrete walls, etc. Additional tamper resistance is provided with the onboard tamper loop that can be used to indicate the removal of the faceplate.
Linear Corporation - 0-211466 - Features
- The Ruggedized R Style 212R Keypad Features a Cast Aluminum Housing and All-Metal Faceplate that has Been Treated with Polyurethane to Increase its Protection from Corrosion
- Indoor/Outdoor Weather Resistant, Self-Contained Metal Housing
- Surface Mount Vandal Resistant Design
- One-Piece Housing Suitable for Wall, Post, or Gooseneck Mounting
- Durable Metal Braille Alpha-Numeric Keys
- Functionality Mode: 212, 232
Specifications
Specifications
Linear Corporation - 0-211466 - Specifications
| Capacity - Openings | 4 |
|---|---|
| Capacity - Users | 100 To 299 Users |
| Environmental | Weatherproof |
| Mounting | Single Gang Electrical Box |
| Product Type | Keypad |
| Read Format | Keypad |
| Sales Category | Electric Readers And Keypad |
| UNSPSC Code | 43211700 |
| Current draw | 108 mA maximum (add 30 mA for each additional relay) |
| Operating voltage | 12-24 VAC/DC – auto adjusting |
| Dimensions | 3.75? W x 5.25? H x 2.50? D |
| Temperature tolerance | -20F to 130F |
