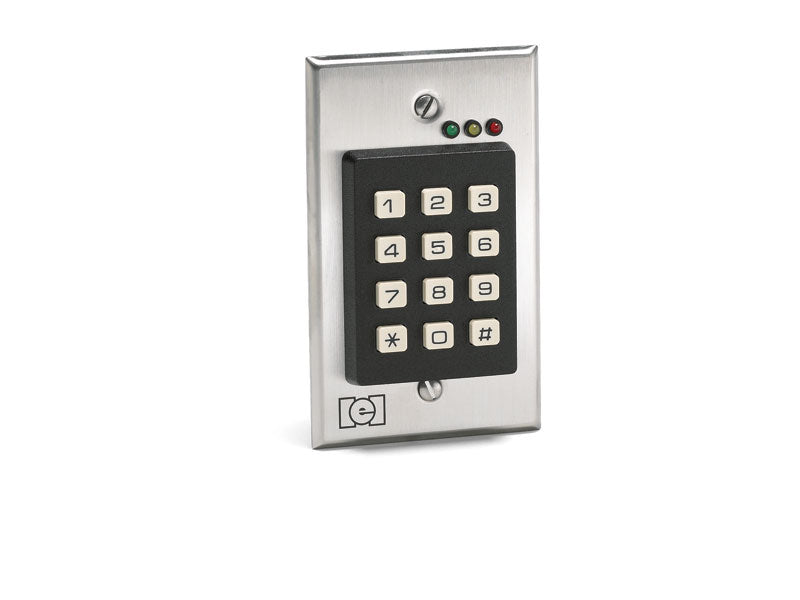

Linear Corporation 0-213111 | Indoor Flush-mount Keypad
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED’s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.
Linear Corporation - 0-213111 - Features
- 120 users
- Single gang design
- 1 SPDT 5 amp relay
- 3 1 amp SPDT relays
- Door Position Monitoring
- Door Ajar, Forced door
- Alarm shunt outputs
- Indoor use only
- Functionality mode: 212, 232
Specifications
Specifications
Linear Corporation - 0-213111 - Specifications
| Capacity - Openings | 1 |
|---|---|
| Capacity - Users | 100 To 299 Users |
| Environmental | Indoor |
| Mounting | Single Gang Electrical Box |
| Product Type | Keypad |
| Read Format | Keypad |
| Sales Category | Electric Readers And Keypad |
| UNSPSC Code | 43211700 |
| Operating voltage | 12-24 VAC/VDC – auto sensing |
| Dimensions | 2.75? W x 4.50? H x 1.3 ” D |
| Current draw | 94 mA maximum (add 30 mA for each relay) |
| Temperature tolerance | -20F to 130F |
