Linear Corporation ACP00747 | Exterior Digital Keypad with Radio Receiver

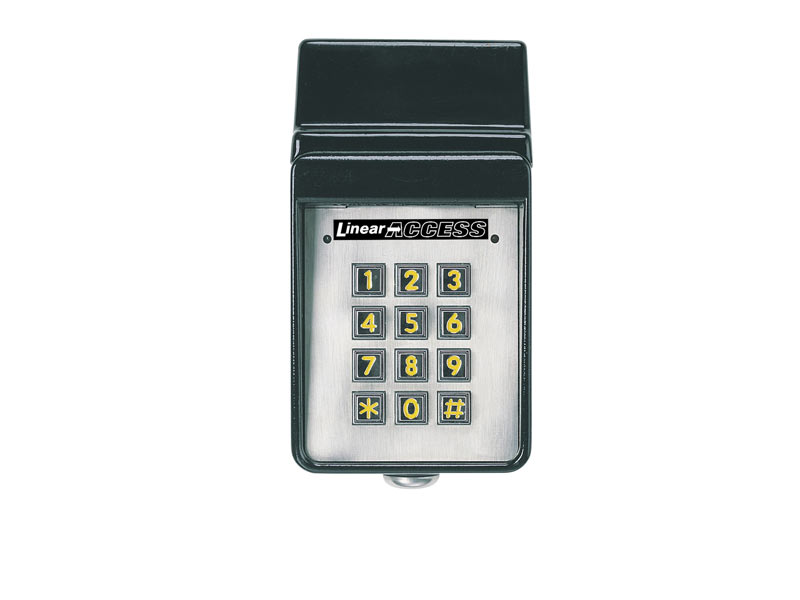

The AKR-1 Exterior Digital Keypad with Radio Receiver is a self-contained keyless entry system ideal for airports, hospitals, warehouses, office buildings, parking lots, and many other commercial facilities. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics. Up to 480 entry codes, from 1 to 6 digits in length, can be programmed and can activate either, or both, of the relay outputs. Up to four sets of block coded MegaCode transmitters (up to 480 transmitters total) can be used to gain access through the AKR-1’s built-in radio receiver. Each transmitter can be individually suspended or re-activated. Four facility codes can be programmed to identify each block of transmitters. A Radio Test Mode is provided for testing transmitters and detecting radio interference. Programming of individual (non-block coded) transmitters is not supported by the AKR-1. Linear’s Model MGT safety edge transmitter is compatible with the AKR-1. This supervised transmitter is used to detect and transmit obstacle events to the AKR-1 receiver. Obstacle signals from an MGT transmitter will activate Relay #2.
