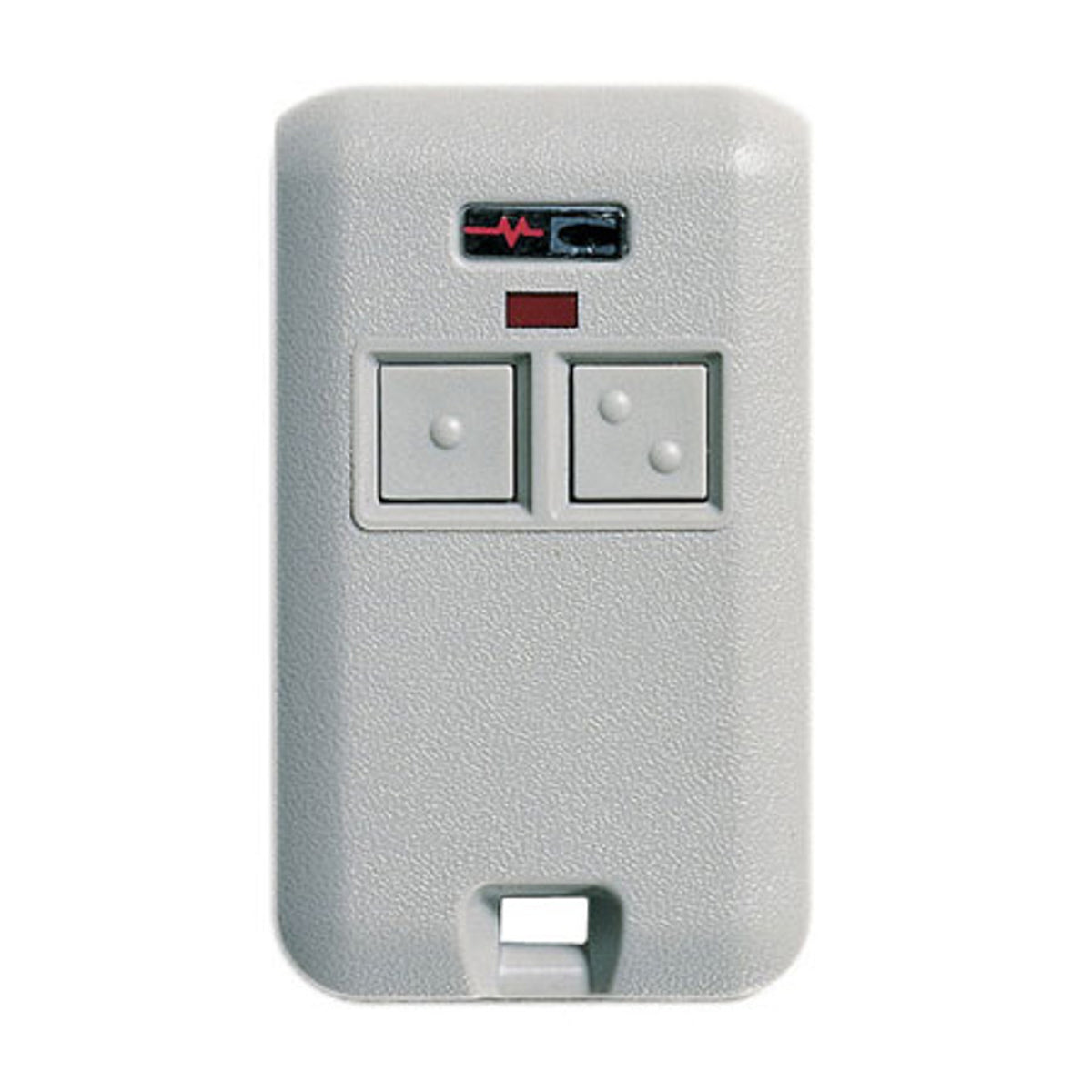

Linear MCS308302 2-Channel Key Ring Transmitter

The Model 308302 2-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door andgate operator applications.The Model 308302 is a two-channel device. Pressing the left button on the transmitter will send a channel one signal.Pressing the right button on the transmitter will send a channel two signal. The buttons feature raised dimples for easy,or vision-impaired identification. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. Amolded-in hole in the case is for attaching the transmitter to a key ring.The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for eachchannel. Independent coding supports activation of a common gate and a private door. The transmitter will onlyactivate receivers set with the same code.The Model 308302 is compatible with 310 MHz Stanley receivers and Model 109950, 302850, and 309013 receivers.
