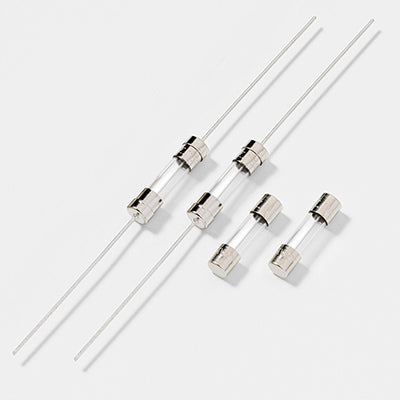

Littelfuse 0218.250VXP | POWR-GARD Cartridge Fuse
Littelfuse - 0218.250VXP - Features
- Meets the IEC 60127-2, sheet 3 specification for time lag fuses
- Lead-free
- Nickel plated brass cap, tin plated copper leads
- -55 to 125 deg C operating temperature
- 35 A at 250 VAC interrupting rating
- Designed to international (IEC ) standards for use globally
- Available in cartridge and axial lead form
- 30 - 60 min minimum at 150%, 120 sec maximum at 210%, 200 - 600 ms minimum at 275%, 10 sec maximum at 275%, 40 - 150 ms minimum at 400%, 3 sec maximum at 400%, 10 - 20 ms minimum at 1000% and 300 ms maximum at 1000% opening time
- VX marking code
Specifications
Specifications
Littelfuse - 0218.250VXP - Applications
- General Purpose Applications
Littelfuse - 0218.250VXP - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Littelfuse - 0218.250VXP - Specifications
| Brand Name | Littelfuse |
|---|---|
| Manufacturer Part Number | 0218.250VXP |
| Item Description | POWR-GARD Cartridge Fuse |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Response Time | 60 min, 2 min, 0.6 to 10 s, 0.15 to 3 s, 0.02 to 0.3 s |
| UPC | 00079458904437 |
