Brand: Littelfuse | SKU: 991086

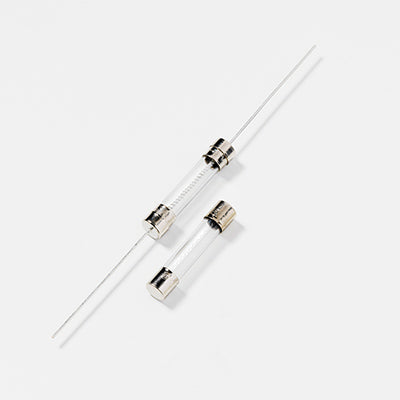

Littelfuse 031301.8VXP | POWR-GARD Cartridge Fuse

$4.23

Description

Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
Guesswork and time consuming circuit testing is eliminated
Unique design offers the same quality performance characteristics as the standard 3AG fuse design
Lead-free
Nickel plated brass cap
-55 to 125 deg C operating temperature
10 kA at 125 VAC interrupting rating
4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
0.141 ohms nominal cold resistance
92 I2T (A2 sec) nominal melting

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
