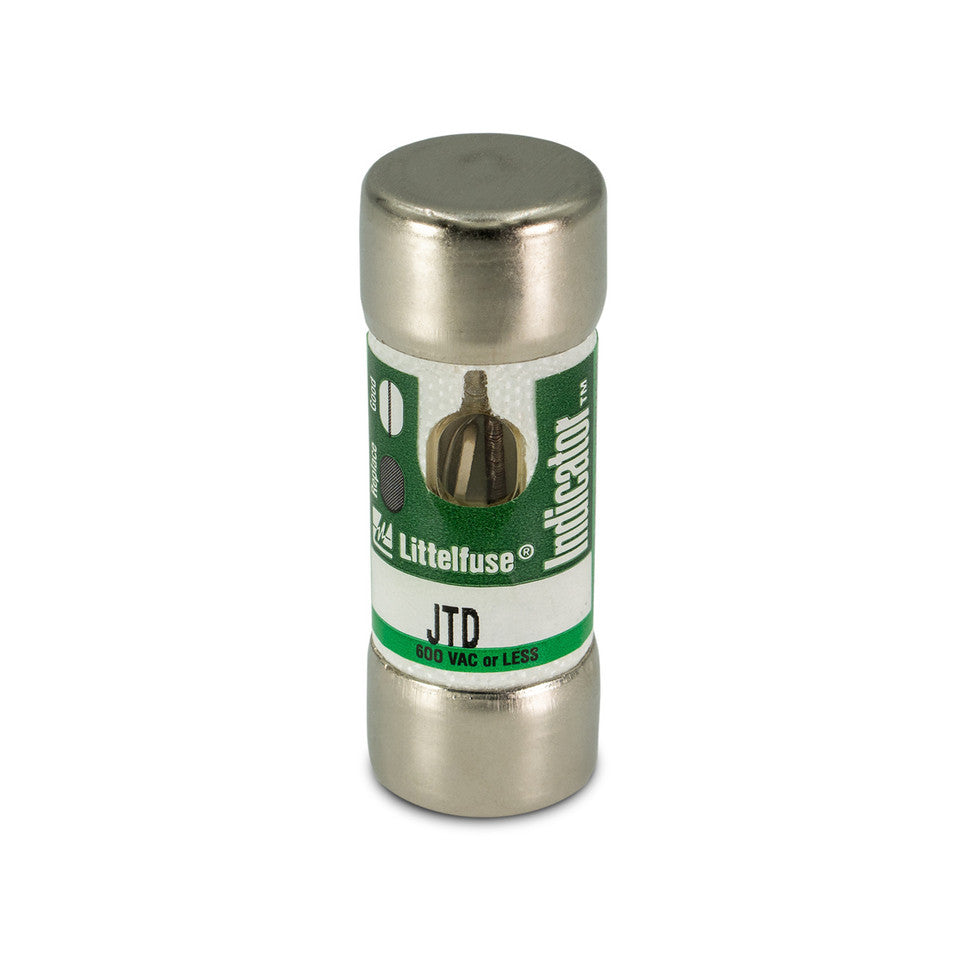

Littelfuse 0JTD025.TXID | UL Class J Time-Delay Fuses With Indication (600V, 25 Amps, 10 pack)
Regular price
$50.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Littelfuse 0JTD025.TXID | UL Class J Time-Delay Fuses With Indicati...
Regular price
$50.97
Unit price
Description
Description
Littelfuse 0JTD025.TXID | UL Class J Time-Delay Fuses With Indication (600V, 25 Amps, 10 pack)
Littelfuse - 0JTD025.TXID - Features
- POWR-PRO technology
- Superior protection against electrical system damage
- Dual-element
- Provides extra time-delay protection with dual-element construction
- Blown fuse indicator
- Built-in, blown-fuse indication for quick identification of blown fuses, which reduces downtime and increases safety
- Current-limiting
- POWR-PRO current limitation is 8?10-600 A. Reduces damage caused by heating and magnetic effects of short-circuit currents
- Mounting options
- Indicating and DIN mount holders available
- Motor control centers
- Fused combination motor controllers
- Transformers
- UL listed series-rated molded case circuit breaker panels
- General purpose circuits
Specifications
Specifications
Littelfuse - 0JTD025.TXID - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Littelfuse - 0JTD025.TXID - Specifications
| Brand Name | Littelfuse |
|---|---|
| Manufacturer Part Number | 0JTD025.TXID |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Current Rating (Continuous) in Amps | 25 |
| Interrupting Rating | 20 kA @ 300V DC |
| Opening | Slo-Blo/Time Lag (T)/Time Delay |
| Maximum AC Voltage (V) | 600 |
| Voltage Rating (V) | 300 |
| Size | Industrial Cartridge |
| Family Style | Powr-Pro Fuse |
| Fuse Class | Class J |
| Indicating | Yes |
| Interrupt Amperage 1 | 200000 |
| Interrupt Amperage (A) - 2 | 300000 |
| Interrupt Amperage 3 | 20000 |
| Interrupt Voltage Type ACDC - 1 | AC |
| Interrupt Voltage Type ACDC - 2 | AC |
| Interrupt Voltage Type ACDC - 3 | DC |
| Interrupt Voltage (V) -1 | 600 |
| Interrupt Voltage (V) -2 | 600 |
| Interrupt Voltage (V) -3 | 300 |
| Mounting Method | Fuse Block / Clip / Holder |
| PG Holder | LFPSJ30 Series |
| UPC | 07945802588 |
| Weight | 0.96 LBS |
