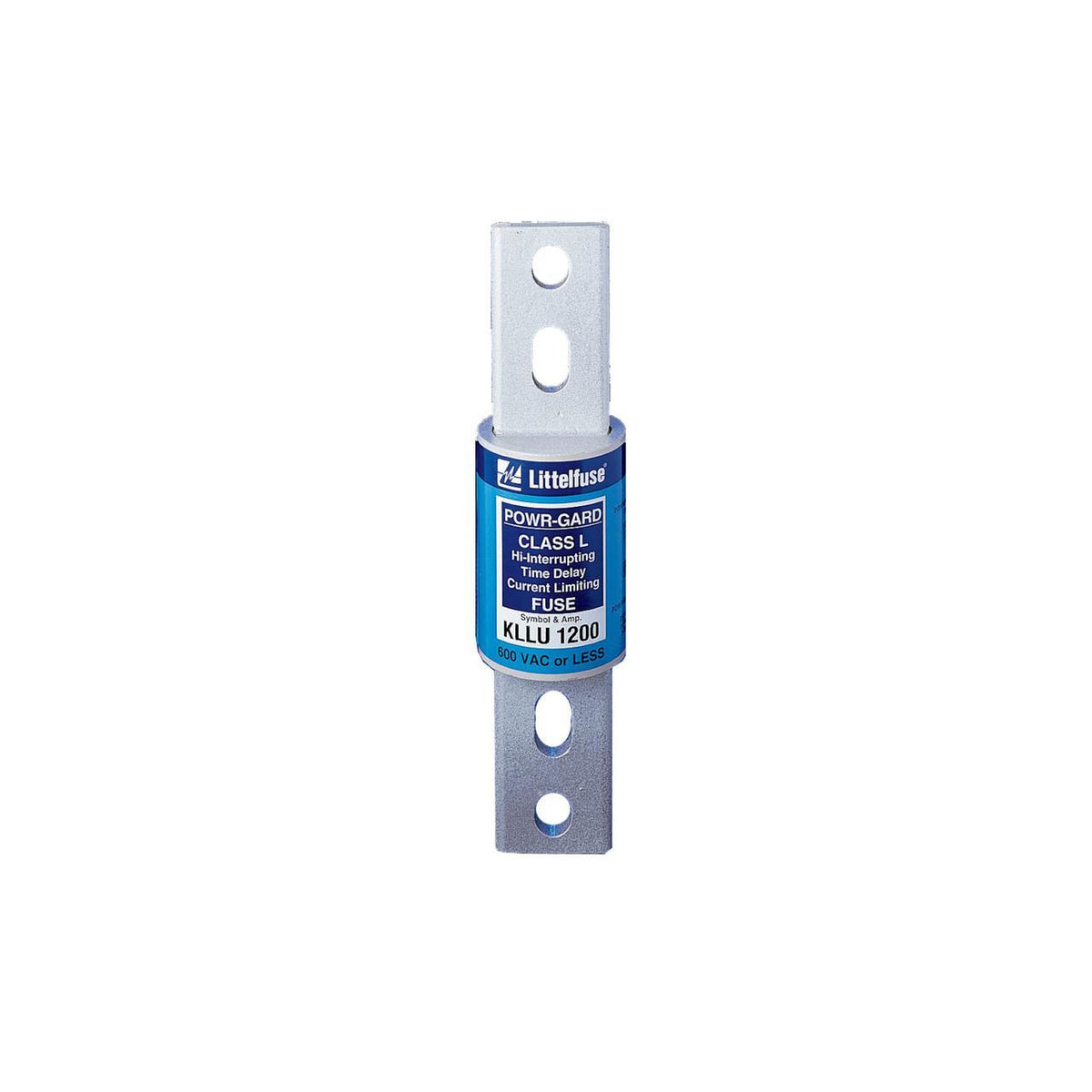

Littelfuse KLLU800.X | POWR-GARD Time Delay Fuse

Littelfuse - KLLU800.X - Features

• Current limiting reduces short circuit damage to systems and equipment and reduced downtime
• Easily coordinated with other system components
• 10 s minimum time delay at 500% of rating eliminates needless downtime caused by heavy starting currents of large motors and other inductive loads
• Selective coordination KLLU fuses co-ordinate well with other class L fuses and with all current limiting Littelfuse fuses rated 600 A or less
• Reduced downtime
• KLLU fuse time current characteristics closely match typical time current curves of circuit breakers
• Although fuse/circuit breaker systems can seldom be 100 percent coordinated , KLLU Series fuses permit use of a wider range of breaker setting than fast-acting class L fuses
• Excellent protection for a single breaker or a group of breakers
• 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
