Louroe Electronics LE-025 | Audio Monitoring System, 12 VDC, -45 dB...
Description
Description

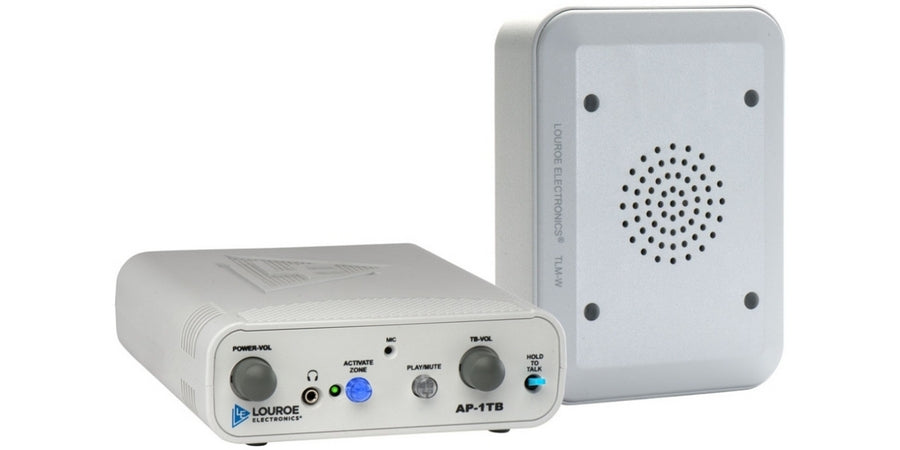

The ASK4 #51 is a single zone audio monitoring system for two-way listen/talkback communication. The remote TLMW is a wall mounted speaker/microphone that contains an onmi-directional microphone and an 2 1/2 speaker. As part of a complete system audio can be monitored by manually pressing the zone activation switch of the base station. It has input-output to a DVR/VCR for recording and playback. Contains a 3 speaker for monitoring live audio and playback from a DVR/VCR. A 12Vdc power supply is included.
Louroe Electronics - LE-025 - Features
- Desktop base station with built-in microphone and speaker
- Line Level input/output (RCA jacks)to NVR for recording and playback
- Volume control for both listen and talkback
- Microphone and speaker mounted within ABS enclosure
- Omni-directional microphone, within 30? diameter
Specifications
Specifications
Louroe Electronics - LE-025 - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- AV Control and Monitoring Systems
- Other AV Control Systems
Louroe Electronics - LE-025 - Specifications
| Manufacturer Name | Louroe Electronics |
|---|---|
| Manufacturer Part Number | LE-025 |
| Item Description | Audio Monitoring System, 12 VDC, -45 dB Sensitivity, ABS Housing |
| Amperage Rating | 10 mA Speaker, 500 mA Base Station |
| Cable Type | RCA |
| Dimensions | WxLxH: 6.6 x 7.9 x 2.4 in. |
| Frequency Rating | 50Hz to 15kHz |
| Impedance | 10 k? Audio input, 8 to 600 ? Headphone |
| Material | ABS |
| Mounting | Desktop, Rack |
| Outputs | Line Level 0 dB, 600W at 1 KW |
| Power Rating | 1 W |
| Product Type | Audio Monitoring System |
| Sensitivity | -45 dB |
| Sound Emission | -45 dB |
| Special Feature | 10 mA Speaker, 500 mA Base Station, 1 W, 50 Hz to 15 kHz, RCA Cable, Impedance = 10 kOhm Audio input, 8 to 600 Ohm Headphone, Desktop, Rack Mount, Outputs: Line Level 0 dB, 600W at 1 KW |
| Voltage Rating | 12 VDC |
| Voltage | 12 VDC |
| Weight | 3 oz. |
