Louroe Electronics LE-070 | Omnidirectional Microphone, 12 VDC, 50 ...
Description
Description

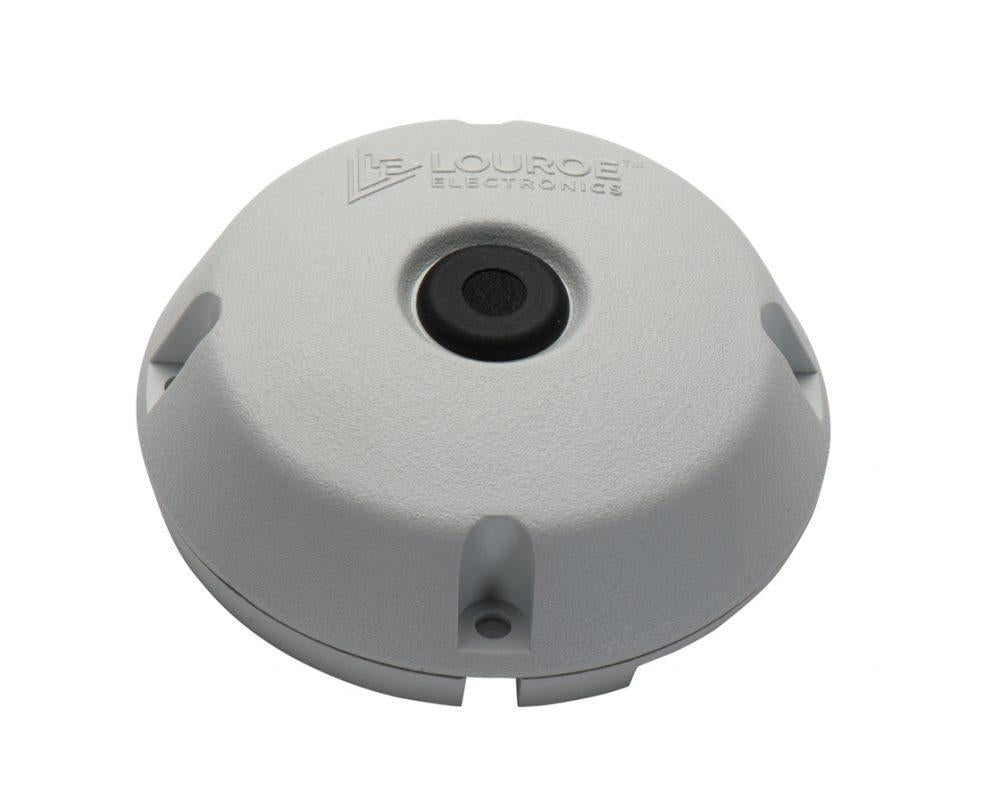

The Verifact Model A is an omni-directional, low impedance, electret condenser microphone with built-in pre-amp for producing line level audio. It is housed in a high impact anti-static ABS dome designed for ceiling or wall-mounting. Normal pick up pattern is approximately 15 ft. from the microphone location, all directions or within 3 ft. diameter circle. The Verifact Model B microphone is identical to the Model A, except that it has an extension cable for positioning the microphone from 3 to 1 ft. from it's dome housing. It is used with high ceiling installations.
Louroe Electronics - LE-070 - Features
- Easily mounted to ceiling or wall
- Durable enclosure
- Sound Capture within 30? diameter circle
- Distances up to 1000? from the Louroe Microphone to a CCTV Camera, Louroe Base Station, or 3rd party monitoring hardware
- Rear Panel Sensitivity Dip Switch, N (Normal Setting, 0db), or L (Low Setting, -6db)
- Easy 3-position Phoenix terminal block connectivity
Specifications
Specifications
Louroe Electronics - LE-070 - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- Audio Equipment
- Microphones
Louroe Electronics - LE-070 - Specifications
| Manufacturer Name | Louroe Electronics |
|---|---|
| Manufacturer Part Number | LE-070 |
| Item Description | Omnidirectional Microphone, 12 VDC, 50 Hz–15 kHz, ABS Housing |
| Diameter | 4 |
| Dimensions | HxDia: 1-1/2 x 4 in. |
| For Use With | IP Camera, NVR and Video System |
| Frequency Response | 50Hz to 15kHz |
| Frequency | 50 Hz to 15 kHz |
| Height | 1-1/2 |
| Impedance | 600 |
| Material | High Impact Anti-Static ABS |
| Microphone Directionality | Omnidirectional |
| Microphone Technology | Electret Condenser |
| Microphone Type | Ceiling; Wall Mount |
| Mounting | Flush, Surface |
| Product Type | Microphone |
| Sensitivity | -45 dB |
| Special Feature | Built-in Preamp |
| Voltage Rating | 12 VDC |
| Voltage | 12 |
