Description
Description

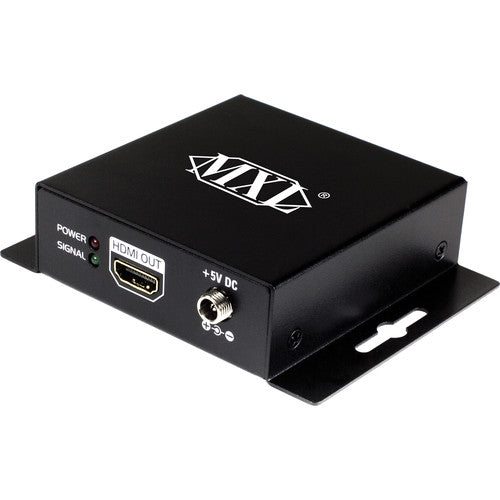

Providing automated signal conversion from SDI to HDMI, the Marshall Electronics VAC-12SH 3G-SDI/HD-SDI to HDMI Converter with Loop-Through SDI Output is a compact unit that supports converting video with embedded audio from SDI to HDMI with embedded audio. It supports NTSC, PAL, HD, and 3G signals, and it auto-detects the input signal from conversion without requiring you to a select from dip switches or navigation menus.The converter features two outputs: the converted HDMI signal output with embedded 48KHz audio and a loop-through 3G-SDI output. This allows you to use a display with an HDMI input to monitor your signal while maintaining an SDI signal path. Each output is re-clocked to preserve the maximum transmission distance of your signal. A 5 VDC power supply is included with the item.
Marshall Electronics - VAC-12SH - Features
- Auto signal detection allows the device to function without your input; what goes in as SDI comes out as HDMI.
- The unit supports audio embedded in the input SDI signal and re-embeds the audio in the HDMI output.
- LED indicators for power and signal lock indicate that the unit has power and is receiving an active signal.
- The unit supports HDMI Deep Color.
Specifications
Specifications
Marshall Electronics - VAC-12SH - Specifications
| Formats Supported SDI Data Rate | 2.97 Gb/s & 2.975/1.001 Gb/s |
|---|---|
| Input Signal | SMPTE 259M |
| Connectors Input | 1 x 3G-SDI |
| Output Impedance | 75 ohms |
| Power | Voltage: 5 VDC |
| Consumption | 3 W (Max) |
