Brand: Marshall Electronics
|
SKU:
942195

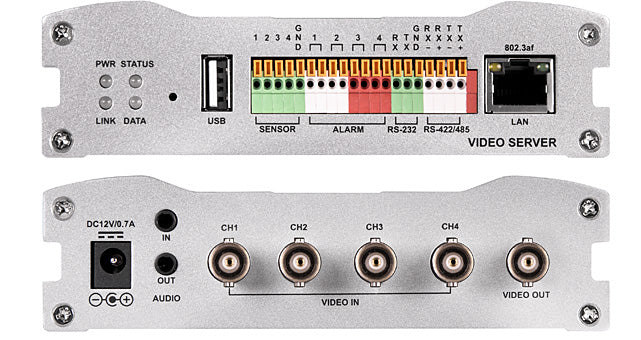

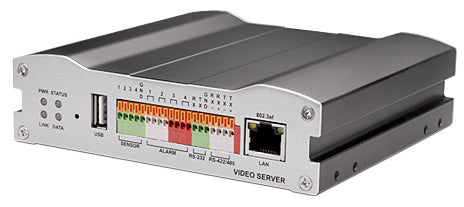

Marshall Electronics VS-14E | 4 Channel CVBS (D1) Encoder with CVBS/IP Quad-Split Output
Regular price
$851.73
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Marshall Electronics VS-14E | 4 Channel CVBS (D1) Encoder with CVBS...
Regular price
$851.73
Unit price
Brand: Marshall Electronics
|
SKU:
942195
Regular price
$851.73
Unit price
Description
Description
Marshall Electronics VS-14E | 4 Channel CVBS (D1) Encoder with CVBS/IP Quad-Split Output.
Marshall Electronics - VS-14E - Features
- USB Recording
- Watchdog for System Recovery
- RS-232- RS-422/485 Communication
- Motion Detection
- 4CH Sensor Input / 4CH Alarm Output
- Adjustable Video Bit Rate: 32kbps ~ 16Mbps
- Adjustable Serial Data I/O: 2-400bps ~ 115-200bps
- Ethernet 10/100/1000 Base - T (RJ-45)
- Full Technical Support with SDK & API
- Each Channel 30fps at Full D1 Resolution
- Two Way Audio Communication (G.711- AAC)
- 1 x Composite Video Output Switchable Individual or Quad
Specifications
Specifications
Marshall Electronics - VS-14E - Specifications
| System Mode | Encoder |
|---|---|
| Compression | H.264- MJPEG |
| Framerate | Max 30fps @ 720x480- Max 25fps @ 720x576 |
| Compression | G.711 / AAC |
| Streaming | Full duplex |
| Housing | Aluminum |
| Weight | 480g |
| Dimension | 134.08(W) X 125.5(D) X 36.87(H)mm |
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) / 20% ~ 80% RH |
| Power Consumption | DC12V/PoE: Max 7.2W |
| Power Supply | Min DC12V/TBD- PoE (Power over Ethernet): 802.3af |
