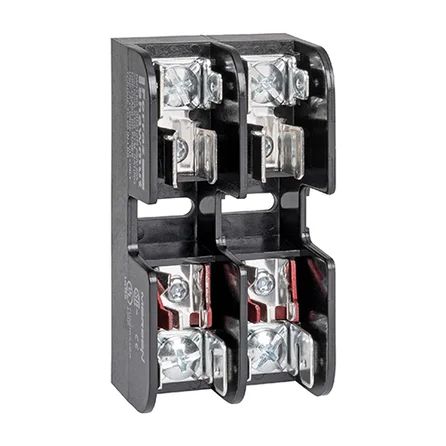

Mersen 30312R | Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen 30312R | Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw ...
Description
Description
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2" x 13/32" midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Ins ula
Specifications
Specifications
Mersen - 30312R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - 30312R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | 30312R |
| Item Description | Fuse Block 600VAC 600VDC Class CC 30A 2-Pole Screw with Reinforced Clip |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | 303 Series Class CC Open-Style Fuse Blocks - Midget |
| EAN/UPC Code | 782001759483 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Fuse Type/Class | Class CC |
| Number of Poles | 2-Pole |
| Fuse Installation Method | Clip-in |
| Torque Rating | 2.26 N m |
| Max Fuse Rating | 30 A |
| Installation Mounting | Screw Mount or DIN Rail |
| Product Width | 21.6 mm |
| Product Length | 77.2 mm |
| Product Height | 33.3 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 0.5488 kg |
| Sell Pack Width | 82.6 mm |
| Sell Pack Length | 177.8 mm |
| Sell Pack Height | 58.4 mm |
| Product group | Fuse Bases |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Product Weight | 0.1043 kg |
