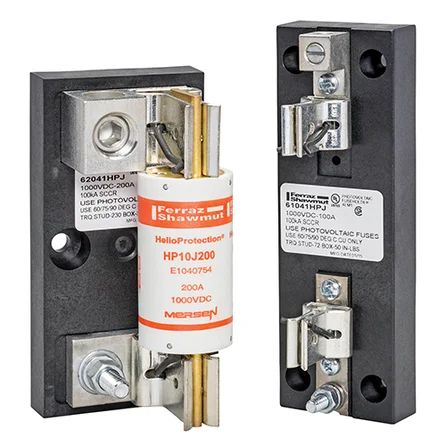

Mersen 62011HPJ | Fuse Block 1000VDC Photovoltaic 200A 1-Pole Stud
Description
Description
Designed specifically for Mersen’s HP6J and HP10J series of photovoltaic fuses, Mersen’s HPJ fuse holders are certified for use with 90°C temperature rated conductors, an industry first. Fuse holders are available with box connectors, stud connectors or a combination of the two in order to meet various customer requirements. Insulators are either molded glass-filled polycarbonate or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tin-plated copper.
Specifications
Specifications
Mersen - 62011HPJ - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - 62011HPJ - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | 62011HPJ |
| Item Description | Fuse Block 1000VDC Photovoltaic 200A 1-Pole Stud |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | HelioProtection HPJ Fuse Holders - Photovoltaic |
| EAN/UPC Code | 782001441166 |
| Rated voltage DC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 200 A |
| ROHS Compliant | Yes |
| AC or DC | DC |
| Fuse Class | Photovoltaic |
| Speed/Characteristic | gPV |
| Number of Poles | 1-Pole |
| Installation Mounting | Direct Screw Mount |
| Product Width | 76.2 mm |
| Product Length | 155.7 mm |
| Product Height | 72.1 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.7484 kg |
| Sell Pack Width | 77.7 mm |
| Sell Pack Length | 177.8 mm |
| Sell Pack Height | 79.2 mm |
| Product group | Fuse Bases |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Product Weight | 0.7484 kg |
