Brand: Mersen
|
SKU:
636028

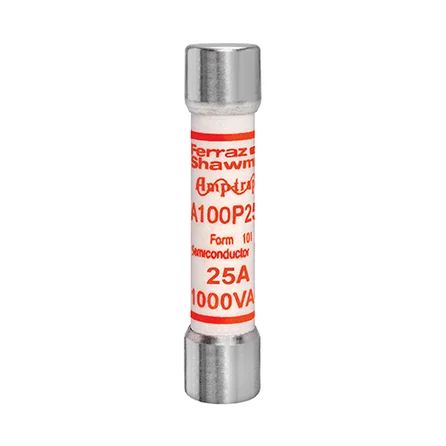

Mersen A100P25-1 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 25A Ferrule
Regular price
$133.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A100P25-1 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 25...
Regular price
$133.64
Unit price
Description
Description
Mersen A100P25-1 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 25A Ferrule
A100P Amp-Trap Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
Specifications
Specifications
Mersen - A100P25-1 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A100P25-1 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A100P25-1 |
| Item Description | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 25A Ferrule |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A100P 1000VAC 750VDC |
| EAN/UPC Code | 782001946517 |
| Rated voltage AC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 25 A |
| AC or DC | AC |
| Speed/Characteristic | High Speed |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 14.2 mm |
| Product Length | 66.8 mm |
| Sell Pack Quantity | 20 EA |
| Sell Pack Weight | 0.5715 kg |
| Sell Pack Width | 79.2 mm |
| Sell Pack Length | 108 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0272 kg |
