Brand: Mersen
|
SKU:
636056

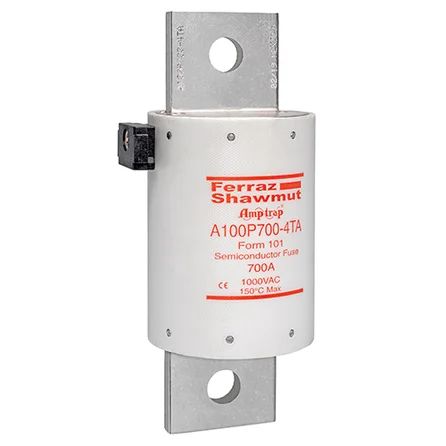

Mersen A100P700-4TA | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 700A Bolted Blade TA Indicator
Regular price
$2,252.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A100P700-4TA | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC...
Regular price
$2,252.19
Unit price
Description
Description
Mersen A100P700-4TA | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 700A Bolted Blade TA Indicator
A100P Amp-Trap Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
Specifications
Specifications
Mersen - A100P700-4TA - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A100P700-4TA - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A100P700-4TA |
| Item Description | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 700A Bolted Blade TA Indicator |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A100P 1000VAC 750VDC |
| EAN/UPC Code | 782001141257 |
| Rated voltage AC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 700 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | TA Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 73.2 mm |
| Product Length | 189 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 2.1092 kg |
| Sell Pack Width | 128.5 mm |
| Sell Pack Length | 298.4 mm |
| Sell Pack Height | 117.3 mm |
| Product group | Semiconductor Protection Fuses |
| Product Weight | 2.0094 kg |
| Body/Insulating Material | GMG |
