Brand: Mersen
|
SKU:
636058

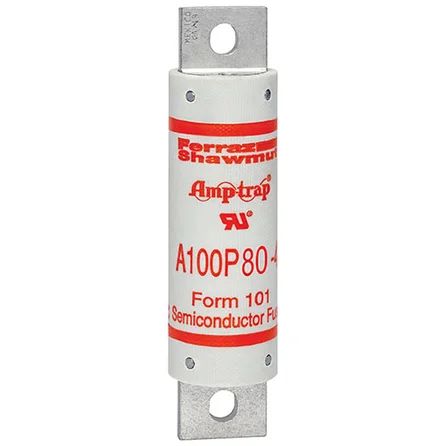

Mersen A100P80-4 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 80A Bolted Blade
Regular price
$241.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A100P80-4 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 80...
Regular price
$241.35
Unit price
Description
Description
Mersen A100P80-4 | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 80A Bolted Blade
A100P Amp-Trap Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
Specifications
Specifications
Mersen - A100P80-4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A100P80-4 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A100P80-4 |
| Item Description | High Speed Fuse Amp-Trap A100P 1000VAC 750VDC 80A Bolted Blade |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A100P 1000VAC 750VDC |
| EAN/UPC Code | 782001948375 |
| Rated voltage AC UL | 1000 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 80 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 31 mm |
| Product Length | 127 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 1.261 kg |
| Sell Pack Width | 146 mm |
| Sell Pack Length | 203.2 mm |
| Sell Pack Height | 38.1 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.2404 kg |
