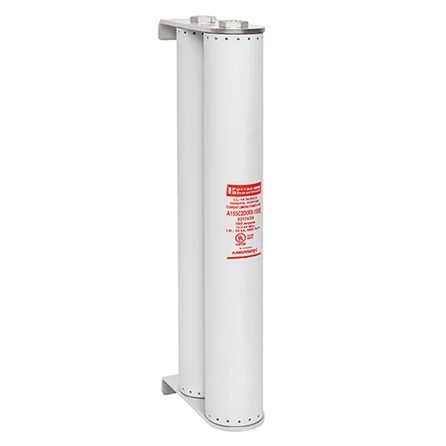

Mersen A155C2D0R0-150E | Medium Voltage E-Rated Fuse 15500VAC 150A ...
Description
Description
Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.
Specifications
Specifications
Mersen - A155C2D0R0-150E - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A155C2D0R0-150E - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A155C2D0R0-150E |
| Item Description | Medium Voltage E-Rated Fuse 15500VAC 150A Clip-lock Series: D0R0 2 Barrels Visual Indicator Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | 15.5kV Clip-Lock Mount Transformer Fuses |
| EAN/UPC Code | 782001802714 |
| Rated voltage AC UL | 15500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 150 A |
| AC or DC | AC |
| Speed/Characteristic | E-Rated |
| Mounting | Clip-lock |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Width | 76.2 mm |
| Product Length | 579.4 mm |
| Product Height | 201.7 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 13.4535 kg |
| Sell Pack Width | 203.2 mm |
| Sell Pack Length | 584.2 mm |
| Sell Pack Height | 79.2 mm |
| Product group | Medium Voltage IEEE Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 12.814 kg |
