Brand: Mersen
|
SKU:
636181

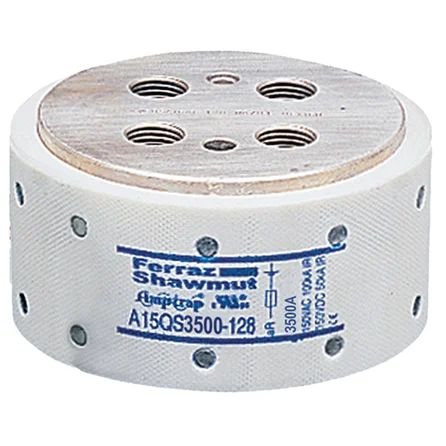

Mersen A15QS3500-128 | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 3500A Hockey Puck, Bolt-In
Regular price
$1,306.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A15QS3500-128 | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC...
Regular price
$1,306.13
Unit price
Description
Description
Mersen A15QS3500-128 | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 3500A Hockey Puck, Bolt-In
A15QS Amp-Trap Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.
Specifications
Specifications
Mersen - A15QS3500-128 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A15QS3500-128 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A15QS3500-128 |
| Item Description | High Speed Fuse Amp-Trap A15QS 150VAC 150VDC 3500A Hockey Puck, Bolt-In |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A15QS 150VAC 150VDC |
| EAN/UPC Code | 782001287993 |
| Rated voltage AC UL | 150 V |
| Rated voltage DC UL | 150 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 3500 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | Hockey Puck, Bolt-In |
| Product Diameter | 88.9 mm |
| Product Length | 47.8 mm |
| Sell Pack Quantity | 2 EA |
| Sell Pack Weight | 3.0481 kg |
| Sell Pack Width | 130 mm |
| Sell Pack Length | 214.4 mm |
| Sell Pack Height | 62 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.4515 kg |
