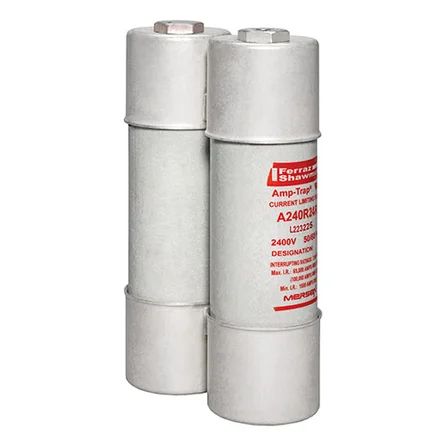

Mersen A240R24R | Back-Up R-Rated Medium Voltage Fuse 2400VAC 24R Mounting: Ferrule Visual Indicator Amp-Trap
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A240R24R | Back-Up R-Rated Medium Voltage Fuse 2400VAC 24R M...
Description
Description
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
Specifications
Specifications
Mersen - A240R24R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A240R24R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A240R24R |
| Item Description | Back-Up R-Rated Medium Voltage Fuse 2400VAC 24R Mounting: Ferrule Visual Indicator Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | 2.5 kV Ferrule Mount Motor |
| EAN/UPC Code | 782001800154 |
| Rated voltage AC UL | 2400 V |
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Speed/Characteristic | R-Rated |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 65 kA |
| Design Details | 24R |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Width | 162.8 mm |
| Product Length | 276.4 mm |
| Product Height | 162.8 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 7.1441 kg |
| Sell Pack Width | 203.2 mm |
| Sell Pack Length | 323.8 mm |
| Sell Pack Height | 101.6 mm |
| Product group | Medium Voltage IEEE Fuses |
| Body/Insulating Material | Epoxy |
| Product Weight | 6.8039 kg |
