Brand: Mersen | SKU: 636386

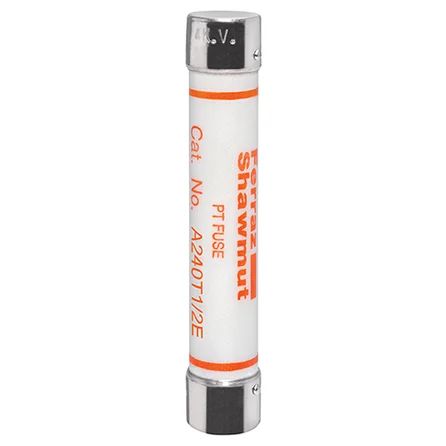

Mersen A240T1/2E | Medium Voltage Potential Transformer Fuse 2400VAC 0.5A Ferrule Amp-Trap

$277.94

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Mersen A240T1/2E | Medium Voltage Potential Transformer Fuse 2400VAC 0.5A Ferrule Amp-Trap

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 10A

Specifications

Mersen - A240T1/2E - Product Categories

Hardware
Tools and Supplies
Supplies

Mersen - A240T1/2E - Specifications

Brand Name	Mersen
Manufacturer Part Number	A240T1/2E
Item Description	Medium Voltage Potential Transformer Fuse 2400VAC 0.5A Ferrule Amp-Trap
Fuse Types	Low Voltage
Type	Fuses
UNSPSC Code	39121600
Series	.625kV to 15.5 kV PT Fuses
EAN/UPC Code	782001800444
Rated voltage AC UL	2400 V
Frequency (Hz)	50/60 Hz
Ampere Rating	0.5 A
AC or DC	AC
Mounting	Clip
AC Max I.R./Breaking Capacity: I1	50 kA
Connection/Terminal Material	Tin-Plated Copper
Connection/Terminal Type	Ferrule
Product Diameter	20.6 mm
Product Length	117.6 mm
Sell Pack Quantity	2 EA
Sell Pack Weight	0.2676 kg
Sell Pack Width	101.6 mm
Sell Pack Length	203.2 mm
Sell Pack Height	69.8 mm
Product group	Medium Voltage IEEE Fuses
Body/Insulating Material	GMG
Product Weight	0.127 kg

Documents and Downloads

Mersen A240T1/2E Specification Sheet
