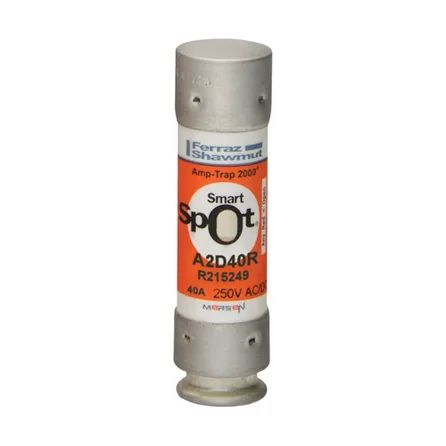

Mersen A2D40R | Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 40A Ferrule SmartSpot Amp-Trap 2000
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A2D40R | Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 4...
Description
Description
Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
Specifications
Specifications
Mersen - A2D40R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A2D40R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A2D40R |
| Item Description | Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 40A Ferrule SmartSpot Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A2D-R - Class RK1 - Time-Delay |
| EAN/UPC Code | 782001990916 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 40 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class RK1 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 20.6 mm |
| Product Length | 76.2 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.567 kg |
| Sell Pack Width | 79.2 mm |
| Sell Pack Length | 108 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.054 kg |
