Brand: Mersen
|
SKU:
636303

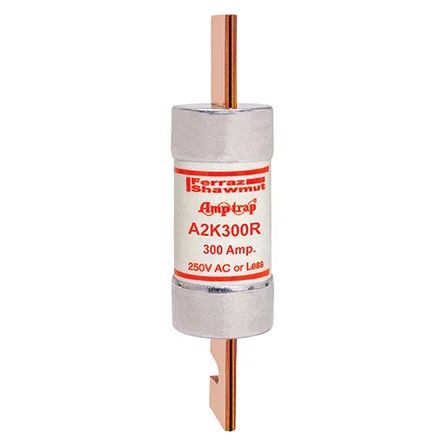

Mersen A2K300R | Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 300A Blade Amp-Trap
Regular price
$764.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A2K300R | Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC...
Regular price
$764.86
Unit price
Description
Description
Mersen A2K300R | Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 300A Blade Amp-Trap
Current-limiting Amp-Trap A2K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.
Specifications
Specifications
Mersen - A2K300R - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A2K300R - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A2K300R |
| Item Description | Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 300A Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A2K-R - Class RK1 - Fast-Acting |
| EAN/UPC Code | 782001915346 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 300 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class RK1 |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 52.4 mm |
| Product Length | 219.2 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.7983 kg |
| Sell Pack Width | 53.8 mm |
| Sell Pack Length | 53.8 mm |
| Sell Pack Height | 223.8 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.762 kg |
