Brand: Mersen
|
SKU:
636357

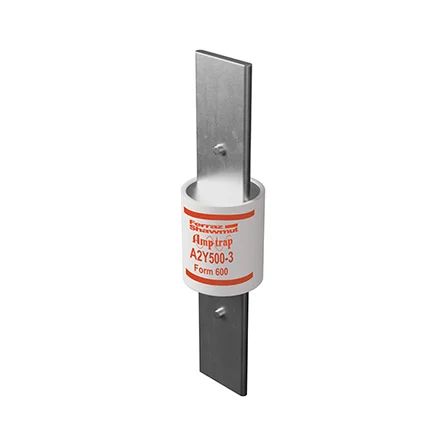

Mersen A2Y500-3 | Fuse A2Y 250VAC 500VDC 500A Type 3 Blade Amp-Trap
Regular price
$2,524.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A2Y500-3 | Fuse A2Y 250VAC 500VDC 500A Type 3 Blade Amp-Trap
Regular price
$2,524.13
Unit price
Description
Description
Mersen A2Y500-3 | Fuse A2Y 250VAC 500VDC 500A Type 3 Blade Amp-Trap
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Specifications
Specifications
Mersen - A2Y500-3 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A2Y500-3 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A2Y500-3 |
| Item Description | Fuse A2Y 250VAC 500VDC 500A Type 3 Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A2Y |
| EAN/UPC Code | 782001908676 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 500 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 63.5 mm |
| Product Length | 263.7 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.6692 kg |
| Sell Pack Width | 66.5 mm |
| Sell Pack Length | 274.6 mm |
| Sell Pack Height | 66.5 mm |
| Product group | Special Purpose Fuses |
| Body/Insulating Material | GMG |
| L/R (ms) | 10 ms |
| Product Weight | 1.5876 kg |
