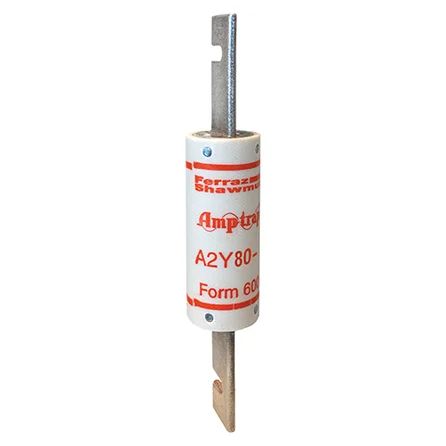

Mersen A2Y80-4 | Fuse A2Y 250VAC 500VDC 80A Type 4 Blade Amp-Trap
Regular price
$303.89
Unit price
Brand: Mersen
|
SKU:
636371
Regular price
$303.89
Unit price
Description
Description
Mersen A2Y80-4 | Fuse A2Y 250VAC 500VDC 80A Type 4 Blade Amp-Trap
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Specifications
Specifications
Mersen - A2Y80-4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A2Y80-4 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A2Y80-4 |
| Item Description | Fuse A2Y 250VAC 500VDC 80A Type 4 Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A2Y |
| EAN/UPC Code | 782001904371 |
| Rated voltage AC UL | 250 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 80 A |
| AC or DC | AC/DC |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 25.4 mm |
| Product Length | 149.4 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 0.9072 kg |
| Sell Pack Width | 136.7 mm |
| Sell Pack Length | 26.9 mm |
| Sell Pack Height | 152.4 mm |
| Product group | Special Purpose Fuses |
| Body/Insulating Material | GMG |
| L/R (ms) | 10 ms |
| Product Weight | 0.1724 kg |
