Brand: Mersen
|
SKU:
636509

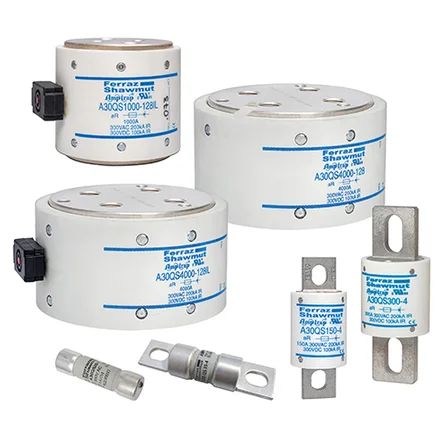

Mersen A30QS1000-128 | High Speed Fuse Amp-Trap A30QS 300VAC 300VDC 1000A Hockey Puck, Bolt-In
Regular price
$2,861.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A30QS1000-128 | High Speed Fuse Amp-Trap A30QS 300VAC 300VDC...
Regular price
$2,861.43
Unit price
Description
Description
Mersen A30QS1000-128 | High Speed Fuse Amp-Trap A30QS 300VAC 300VDC 1000A Hockey Puck, Bolt-In
A30QS Amp-Trap high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
Specifications
Specifications
Mersen - A30QS1000-128 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A30QS1000-128 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A30QS1000-128 |
| Item Description | High Speed Fuse Amp-Trap A30QS 300VAC 300VDC 1000A Hockey Puck, Bolt-In |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A30QS 300VAC 300VDC |
| EAN/UPC Code | 782001280932 |
| Rated voltage AC UL | 300 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 1000 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | Hockey Puck, Bolt-In |
| Product Diameter | 76.2 mm |
| Product Length | 65.8 mm |
| Sell Pack Quantity | 3 EA |
| Sell Pack Weight | 4.4316 kg |
| Sell Pack Width | 127 mm |
| Sell Pack Length | 190.5 mm |
| Sell Pack Height | 69.8 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.4061 kg |
