Brand: Mersen
|
SKU:
636499
Mersen A3T60 | Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 60A Ferrule Amp-Trap
Regular price
$39.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A3T60 | Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 60A F...
Regular price
$39.24
Unit price
Description
Description

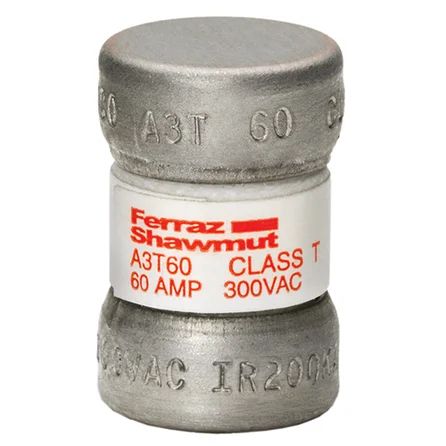

Mersen A3T60 | Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 60A Ferrule Amp-Trap
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Specifications
Specifications
Mersen - A3T60 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A3T60 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A3T60 |
| Item Description | Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 60A Ferrule Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A3T - Class T - Fast-Acting |
| EAN/UPC Code | 782001890148 |
| Rated voltage AC UL | 300 V |
| Rated voltage DC UL | 160 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 60 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class T |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 14.2 mm |
| Product Length | 22.4 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0953 kg |
| Sell Pack Width | 23.9 mm |
| Sell Pack Length | 72.9 mm |
| Sell Pack Height | 28.4 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0091 kg |
