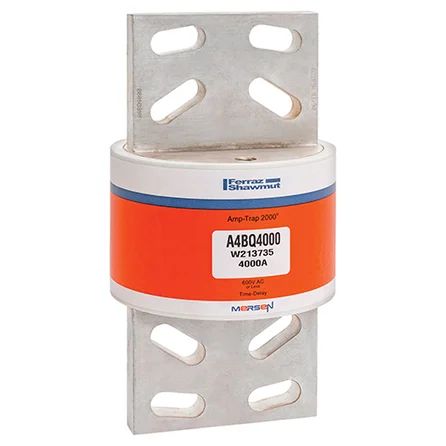

Mersen A4BQ4000 | Fuse A4BQ - Class L - Time-Delay 600VAC 4000A Bla...
Description
Description
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Specifications
Specifications
Mersen - A4BQ4000 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A4BQ4000 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A4BQ4000 |
| Item Description | Fuse A4BQ - Class L - Time-Delay 600VAC 4000A Blade Amp-Trap 2000 |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A4BQ - Class L - Time-Delay |
| EAN/UPC Code | 782001930172 |
| Rated voltage AC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 4000 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 146 mm |
| Product Length | 273 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.1929 kg |
| Sell Pack Width | 152.4 mm |
| Sell Pack Length | 298.4 mm |
| Sell Pack Height | 146 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.134 kg |
