Brand: Mersen
|
SKU:
A4BT900

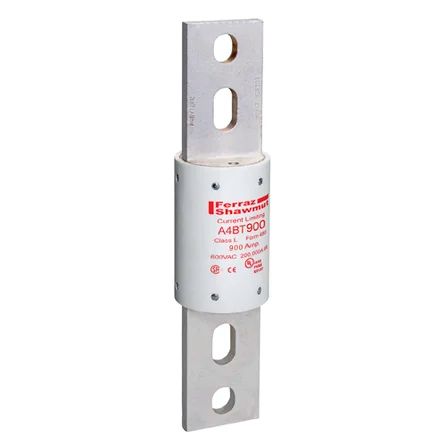

Mersen A4BT900 | Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 900A Blade Amp-Trap
Regular price
$1,642.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A4BT900 | Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 900...
Regular price
$1,642.23
Unit price
Description
Description
Mersen A4BT900 | Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 900A Blade Amp-Trap
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.
Specifications
Specifications
Mersen - A4BT900 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A4BT900 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A4BT900 |
| Item Description | Fuse A4BT - Class L - Time-Delay 600VAC 500VDC 900A Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A4BT - Class L - Time-Delay |
| EAN/UPC Code | 782001939915 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 900 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 63.5 mm |
| Product Length | 273 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 2.0321 kg |
| Sell Pack Width | 85.9 mm |
| Sell Pack Length | 279.4 mm |
| Sell Pack Height | 82.6 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.9368 kg |
