Brand: Mersen
|
SKU:
A4BY900

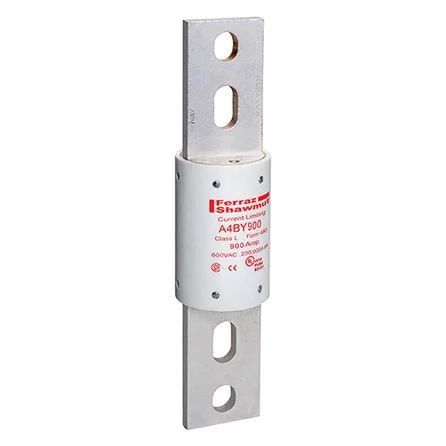

Mersen A4BY900 | Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 900A Blade Amp-Trap
Regular price
$1,351.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A4BY900 | Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 900...
Regular price
$1,351.63
Unit price
Description
Description
Mersen A4BY900 | Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 900A Blade Amp-Trap
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Specifications
Specifications
Mersen - A4BY900 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A4BY900 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A4BY900 |
| Item Description | Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 900A Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A4BY - Class L - Time-Delay |
| EAN/UPC Code | 782001939137 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 900 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 63.5 mm |
| Product Length | 273 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 2.0366 kg |
| Sell Pack Width | 85.9 mm |
| Sell Pack Length | 279.4 mm |
| Sell Pack Height | 82.6 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.9414 kg |
