Brand: Mersen | SKU: A4J15

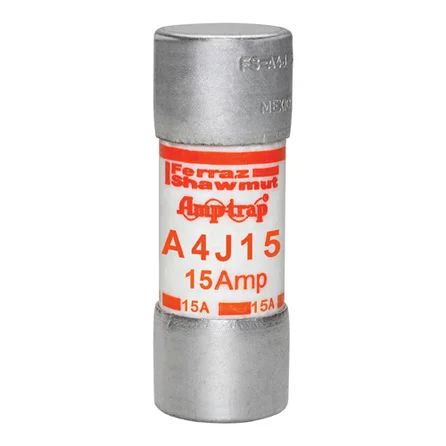

Mersen A4J15 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 15A Ferrule Amp-Trap

$43.16

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Mersen A4J15 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 15A Ferrule Amp-Trap

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Specifications

Mersen - A4J15 - Product Categories

Hardware
Tools and Supplies
Supplies

Mersen - A4J15 - Specifications

Brand Name	Mersen
Manufacturer Part Number	A4J15
Item Description	Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 15A Ferrule Amp-Trap
Fuse Types	Low Voltage
Type	Fuses
UNSPSC Code	39121600
Series	A4J - Class J - Fast-Acting
EAN/UPC Code	782001960155
Rated voltage AC UL	600 V
Rated voltage DC UL	300 V
Frequency (Hz)	50/60 Hz
Ampere Rating	15 A
ROHS Compliant	Yes
AC or DC	AC/DC
Fuse Class	Class J
Speed/Characteristic	Fast-Acting
Mounting	Clip
AC Max I.R./Breaking Capacity: I1	200 kA
Connection/Terminal Material	Tin-Plated Copper
Connection/Terminal Type	Ferrule
Product Diameter	20.7 mm
Product Length	57.2 mm
Sell Pack Quantity	10 EA
Sell Pack Weight	0.4627 kg
Sell Pack Width	60.5 mm
Sell Pack Length	108 mm
Sell Pack Height	42.9 mm
Product group	Low Voltage UL/CSA Fuses
Body/Insulating Material	PolyTube
Product Weight	0.044 kg
