Brand: Mersen | SKU: A4J225

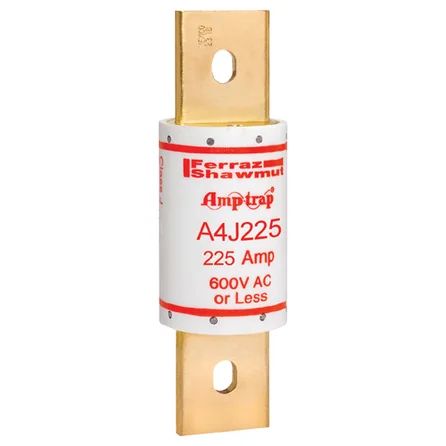

Mersen A4J225 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 225A Blade Amp-Trap

$756.73

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Mersen A4J225 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 225A Blade Amp-Trap

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Specifications

Mersen - A4J225 - Product Categories

Hardware
Tools and Supplies
Supplies

Mersen - A4J225 - Specifications

Brand Name	Mersen
Manufacturer Part Number	A4J225
Item Description	Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 225A Blade Amp-Trap
Fuse Types	Low Voltage
Type	Fuses
UNSPSC Code	39121600
Series	A4J - Class J - Fast-Acting
EAN/UPC Code	782001960384
Rated voltage AC UL	600 V
Rated voltage DC UL	300 V
Frequency (Hz)	50/60 Hz
Ampere Rating	225 A
ROHS Compliant	Yes
AC or DC	AC/DC
Fuse Class	Class J
Speed/Characteristic	Fast-Acting
Mounting	Clip
AC Max I.R./Breaking Capacity: I1	200 kA
Connection/Terminal Material	Brass Alloy
Connection/Terminal Type	Blade
Product Diameter	54 mm
Product Length	181.1 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.8346 kg
Sell Pack Width	53.8 mm
Sell Pack Length	53.8 mm
Sell Pack Height	184.1 mm
Product group	Low Voltage UL/CSA Fuses
Body/Insulating Material	GMG
Product Weight	0.7938 kg
