Description

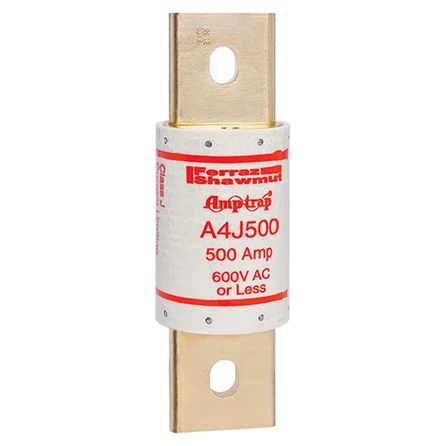

Mersen A4J500 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 500A Blade Amp-Trap

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Specifications

Mersen - A4J500 - Product Categories

Hardware
Tools and Supplies
Supplies

Mersen - A4J500 - Specifications

Brand Name	Mersen
Manufacturer Part Number	A4J500
Item Description	Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 500A Blade Amp-Trap
Fuse Types	Low Voltage
Type	Fuses
UNSPSC Code	39121600
Series	A4J - Class J - Fast-Acting
EAN/UPC Code	782001960490
Rated voltage AC UL	600 V
Rated voltage DC UL	300 V
Frequency (Hz)	50/60 Hz
Ampere Rating	500 A
ROHS Compliant	Yes
AC or DC	AC/DC
Fuse Class	Class J
Speed/Characteristic	Fast-Acting
Mounting	Clip
AC Max I.R./Breaking Capacity: I1	200 kA
Connection/Terminal Material	Brass Alloy
Connection/Terminal Type	Blade
Product Diameter	63.5 mm
Product Length	203.2 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	1.4379 kg
Sell Pack Width	63.5 mm
Sell Pack Length	222.2 mm
Sell Pack Height	60.5 mm
Product group	Low Voltage UL/CSA Fuses
Body/Insulating Material	GMG
Product Weight	1.3698 kg
