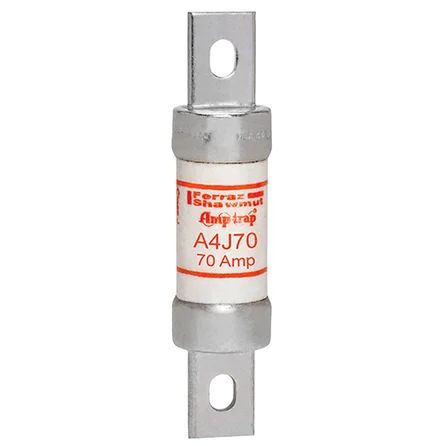

Mersen A4J70 | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 70A B...
Description
Description
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capabi lit
Mersen - A4J70 - Features
- High current- limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label
- Ideal for use in capacitors, load centers, panelboards, switchboards, bus duct, feeder circuits, circuit breakers; lightning, heating, and general loads.
Specifications
Specifications
Mersen - A4J70 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A4J70 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A4J70 |
| Item Description | Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 70A Blade Amp-Trap |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | A4J - Class J - Fast-Acting |
| EAN/UPC Code | 782001960285 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 300 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 70 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 27 mm |
| Product Length | 117.6 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 0.5715 kg |
| Sell Pack Width | 136.7 mm |
| Sell Pack Length | 152.4 mm |
| Sell Pack Height | 26.9 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.1089 kg |
