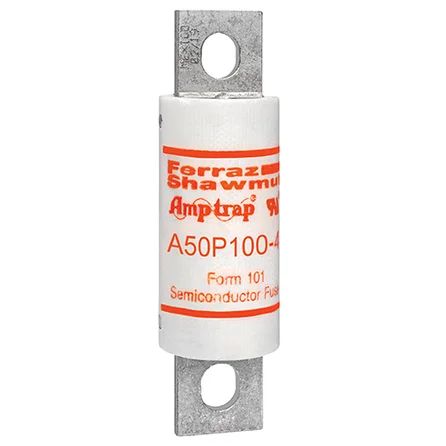

Mersen A50P100-4 | High Speed Fuse Amp-Trap A50P 500VAC 450VDC 100A...
Description
Description
A50P Amp-Trap Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.
A50P Amp-trap Form 101 Semiconductor Protection fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.
Mersen - A50P100-4 - Features
- Low I2t minimizes damage to protected components on short circuit
- Controlled arc voltage reduces stress to circuit components during fuse clearing
- Choice of mounting types helps in equipment design
- Very fast acting
- Current limiting
- Protection of DC drives, UPS and other equipment of 500 volts or less.
Specifications
Specifications
Mersen - A50P100-4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A50P100-4 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A50P100-4 |
| Item Description | High Speed Fuse Amp-Trap A50P 500VAC 450VDC 100A Blade |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A50P 500VAC 450VDC |
| EAN/UPC Code | 782001946067 |
| Rated voltage AC UL | 500 V |
| Rated voltage DC UL | 450 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 100 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 35 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 25.4 mm |
| Product Length | 92.2 mm |
| Sell Pack Quantity | 20 EA |
| Sell Pack Weight | 2.3814 kg |
| Sell Pack Width | 133.4 mm |
| Sell Pack Length | 171.4 mm |
| Sell Pack Height | 53.8 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.1134 kg |
