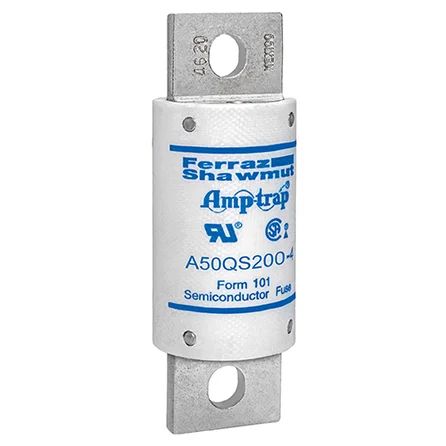

Mersen A50QS200-4 | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 20...
Description
Description
A50QS Amp-Trap Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
Specifications
Specifications
Mersen - A50QS200-4 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A50QS200-4 - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A50QS200-4 |
| Item Description | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 200A Blade |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A50QS 500VAC 500VDC |
| EAN/UPC Code | 782001947767 |
| Rated voltage AC UL | 500 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 200 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 31 mm |
| Product Length | 92.2 mm |
| Sell Pack Quantity | 5 EA |
| Sell Pack Weight | 0.9752 kg |
| Sell Pack Width | 146 mm |
| Sell Pack Length | 203.2 mm |
| Sell Pack Height | 38.1 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.186 kg |
