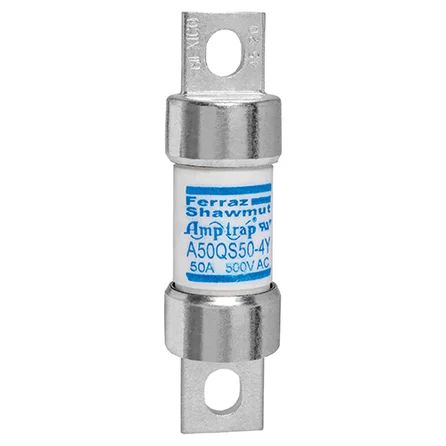

Mersen A50QS50-4Y | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 50A Blade 4Y
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Mersen A50QS50-4Y | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 50...
Description
Description
A50QS Amp-Trap Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
A50QS Amp-Trap Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features - lower I2t to provide better protection for equi pment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
Mersen - A50QS50-4Y - Features
- UL recognized component UL File 60314
- AC: UL guide no. JFHR2
- DC Tested to UL standard 198L parameters (70-1200A)
- CSA Certified LR12636
Specifications
Specifications
Mersen - A50QS50-4Y - Product Categories
- Hardware
- Tools and Supplies
- Supplies
Mersen - A50QS50-4Y - Specifications
| Brand Name | Mersen |
|---|---|
| Manufacturer Part Number | A50QS50-4Y |
| Item Description | High Speed Fuse Amp-Trap A50QS 500VAC 500VDC 50A Blade 4Y |
| Fuse Types | Low Voltage |
| Type | Fuses |
| UNSPSC Code | 39121600 |
| Series | Amp-Trap A50QS 500VAC 500VDC |
| EAN/UPC Code | 782001141196 |
| Rated voltage AC UL | 500 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 50 A |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 20.8 mm |
| Product Length | 77 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 1.1929 kg |
| Sell Pack Width | 79.2 mm |
| Sell Pack Length | 108 mm |
| Sell Pack Height | 42.9 mm |
| Product group | Semiconductor Protection Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.1134 kg |
